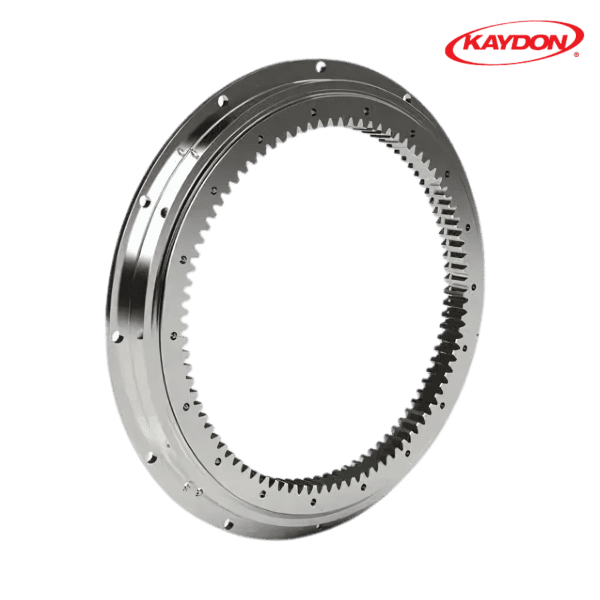

RK6-33N1Z KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - RK6-33N1Z KAYDON
Category - Slewing Ring Bearings (RK Series with Internal Gear)

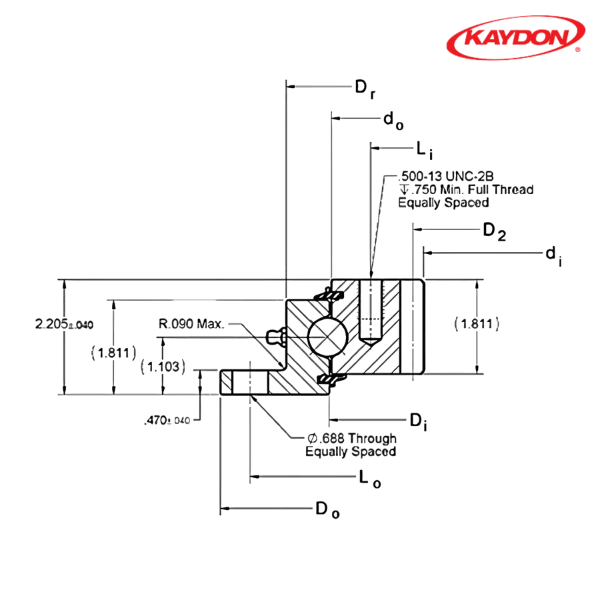

Outline Dimension (Do) inch - 37.32
Outline Dimension (di) inch - 29.133
Outline Dimension (Dr) inch - 34.8
Outline Dimension (Di) inch - 33.15
Outline Dimension (do) inch - 33.07
Weight (G) kg - 67.131616
Mounting Holes Outer Ring (Lo) inch - 36.25
Mounting Holes Outer Ring (no) - 18
Mounting Holes Inner ring (Li) inch - 31.5
Mounting Holes Inner ring (ni) - 18
Gear Data (D2) inch - 29.667
Gear Data (Pd) - 3
Gear Data (z2) - 89
Maximum Gear Tooth Load (Fz) lbs - 8520
Moment Rating (Crm) ft-lbs - 56500

** Images are for representation purposes only
