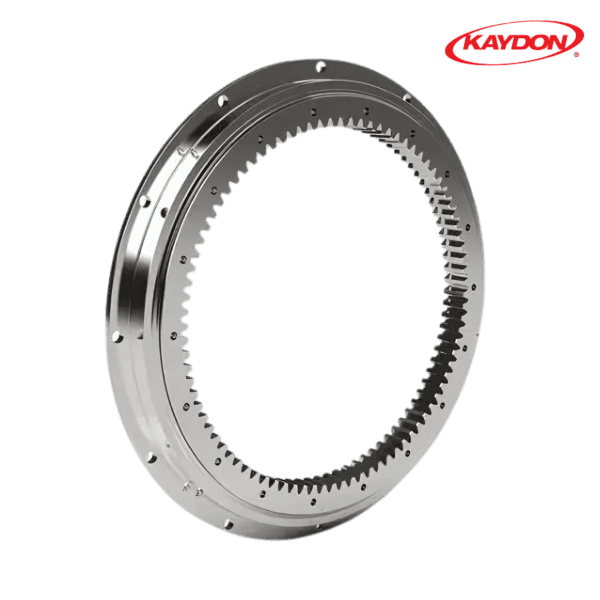

RK6-33E1Z KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - RK6-33E1Z KAYDON
Category - Slewing Ring Bearings (RK Series with External Gear)

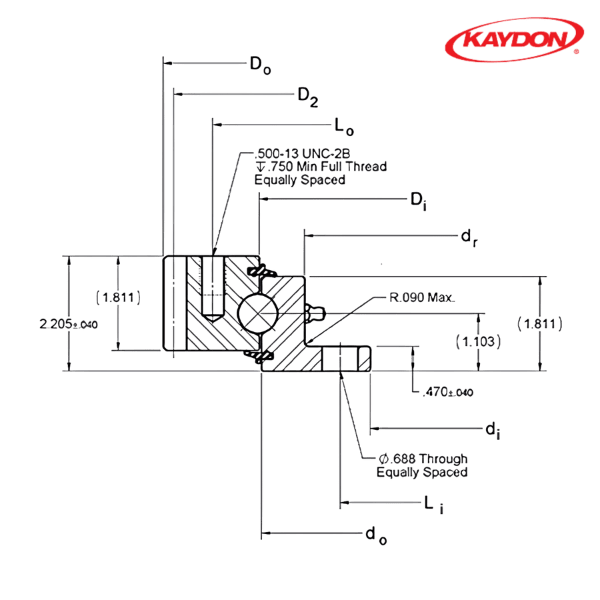

Outline Dimension (Do) inch - 37.2
Outline Dimension (di) inch - 28.9
Outline Dimension (Di) inch - 33.15
Outline Dimension (do) inch - 33.07
Outline Dimension (dr) inch - 31.42
Weight (G) kg - 68.945984
Mounting Holes Outer Ring (Lo) inch - 35
Mounting Holes Outer Ring (no) - 18
Mounting Holes Inner ring (Li) inch - 30
Mounting Holes Inner ring (ni) - 18
Gear Data (D2) inch - 36.667
Gear Data (Pd) - 3
Gear Data (z2) - 110
Maximum Gear Tooth Load (Fz) lbs - 7580
Moment Rating (Crm) ft-lbs - 56500

** Images are for representation purposes only
