Description
Brand - KAYDON
Item Number - RK6-29P1Z KAYDON
Category - Slewing Ring Bearings (RK Series with no Gear)

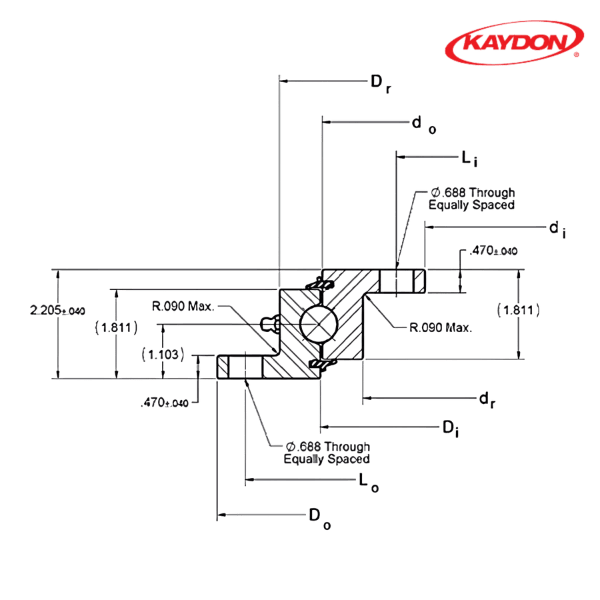

Outline Dimension (Do) inch - 33.39
Outline Dimension (di) inch - 24.97
Outline Dimension (Dr) inch - 30.87
Outline Dimension (Di) inch - 29.22
Outline Dimension (do) inch - 29.14
Outline Dimension (dr) inch - 27.49
Weight (G) kg - 47.173568
Mounting Holes Outer Ring (Lo) inch - 32.25
Mounting Holes Outer Ring (no) - 15
Mounting Holes Inner ring (Li) inch - 26.13
Mounting Holes Inner ring (ni) - 18
Moment Rating (Crm) ft-lbs - 54200

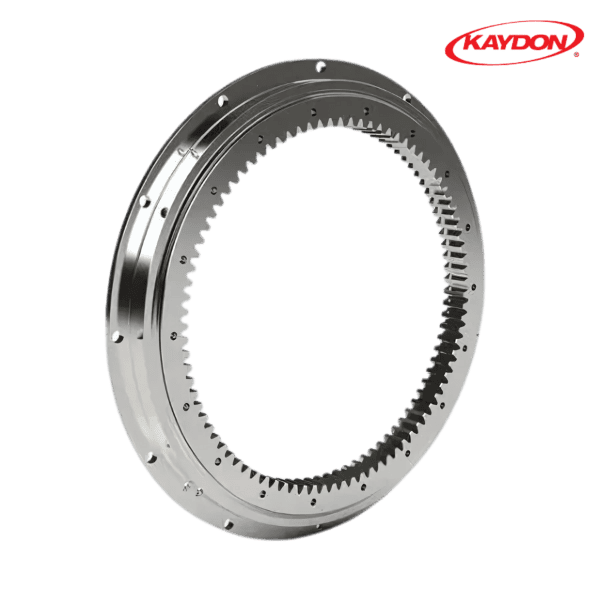

** Images are for representation purposes only
