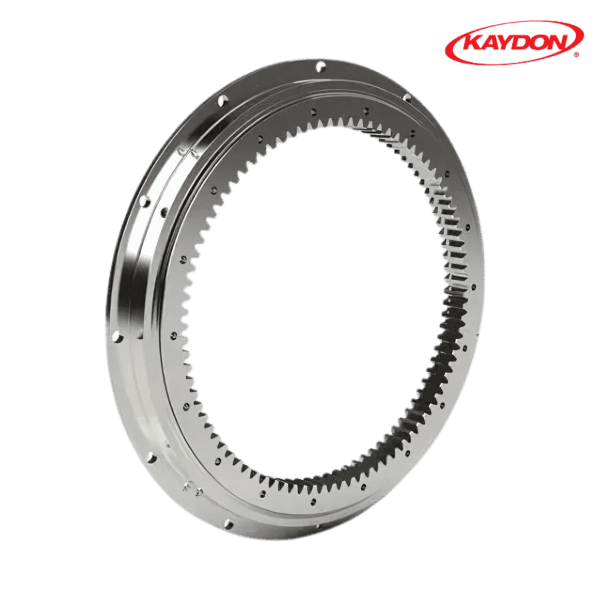

RK6-29N1Z KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - RK6-29N1Z KAYDON
Category - Slewing Ring Bearings (RK Series with Internal Gear)

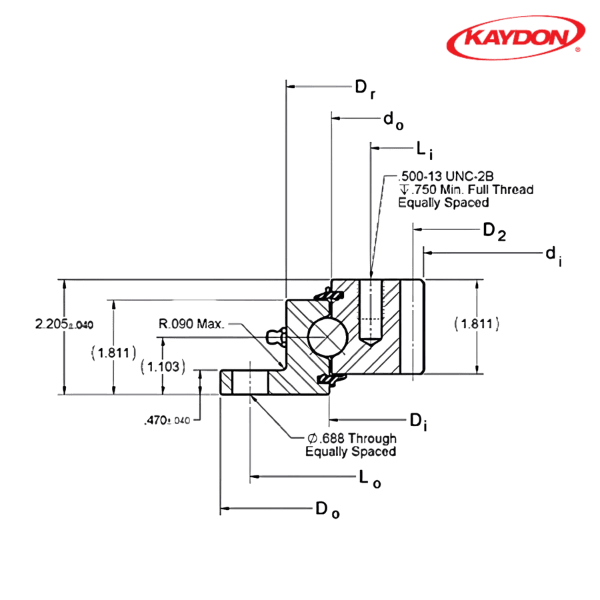

Outline Dimension (Do) inch - 33.39
Outline Dimension (di) inch - 25.6
Outline Dimension (Dr) inch - 30.87
Outline Dimension (Di) inch - 29.22
Outline Dimension (do) inch - 29.14
Weight (G) kg - 54.884632
Mounting Holes Outer Ring (Lo) inch - 32.25
Mounting Holes Outer Ring (no) - 15
Mounting Holes Inner ring (Li) inch - 27.63
Mounting Holes Inner ring (ni) - 18
Gear Data (D2) inch - 26
Gear Data (Pd) - 4
Gear Data (z2) - 104
Maximum Gear Tooth Load (Fz) lbs - 6300
Moment Rating (Crm) ft-lbs - 54200

** Images are for representation purposes only
