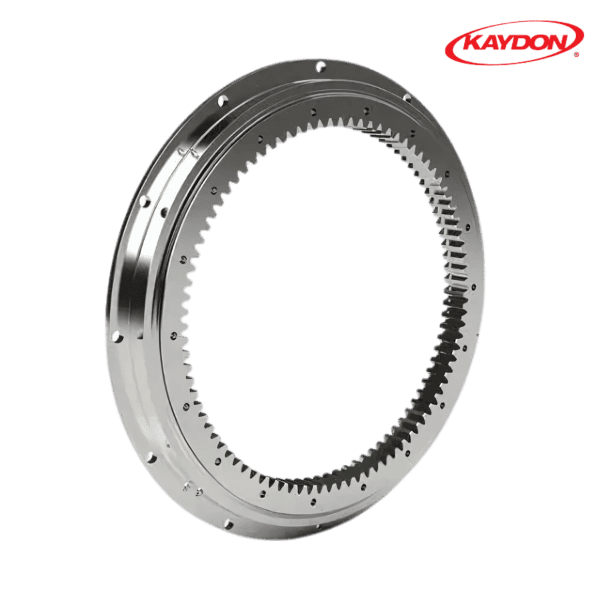

RK6-29E1Z KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - RK6-29E1Z KAYDON
Category - Slewing Ring Bearings (RK Series with External Gear)

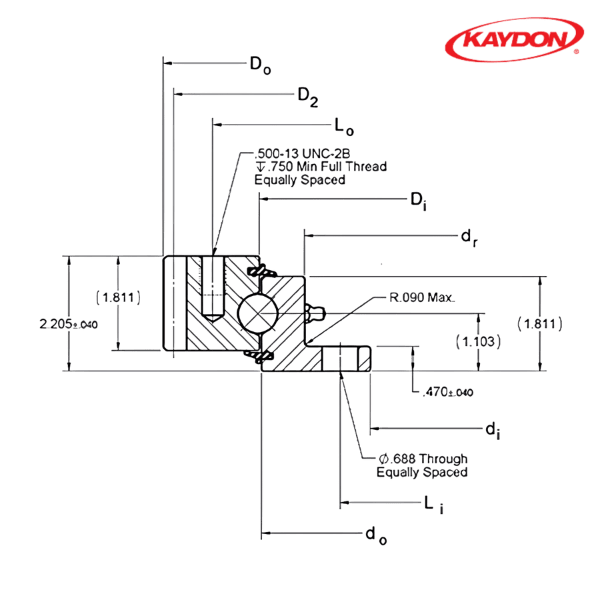

Outline Dimension (Do) inch - 32.9
Outline Dimension (di) inch - 24.97
Outline Dimension (Di) inch - 29.22
Outline Dimension (do) inch - 29.14
Outline Dimension (dr) inch - 27.49
Weight (G) kg - 58.059776
Mounting Holes Outer Ring (Lo) inch - 31
Mounting Holes Outer Ring (no) - 18
Mounting Holes Inner ring (Li) inch - 26.13
Mounting Holes Inner ring (ni) - 18
Gear Data (D2) inch - 32.5
Gear Data (Pd) - 4
Gear Data (z2) - 130
Maximum Gear Tooth Load (Fz) lbs - 5740
Moment Rating (Crm) ft-lbs - 54200

** Images are for representation purposes only
