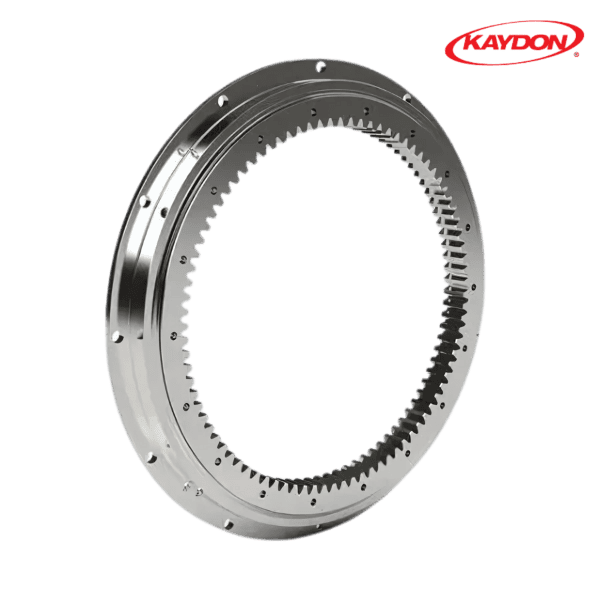

RK6-25N1Z KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - RK6-25N1Z KAYDON
Category - Slewing Ring Bearings (RK Series with Internal Gear)

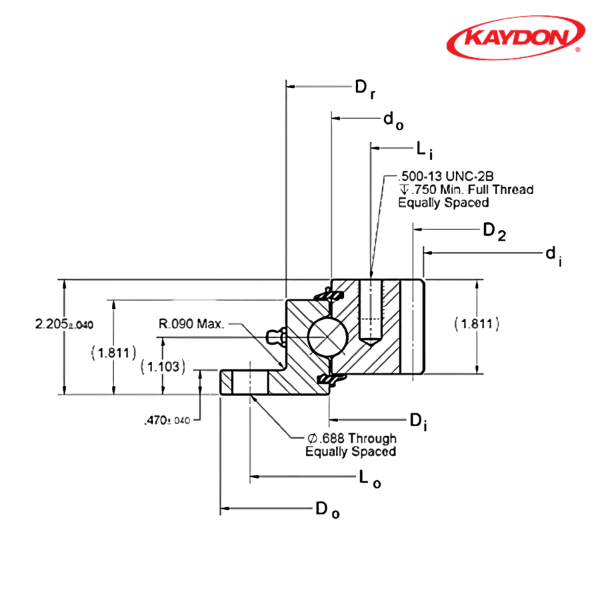

Outline Dimension (Do) inch - 29.45
Outline Dimension (di) inch - 21.6
Outline Dimension (Dr) inch - 26.93
Outline Dimension (Di) inch - 25.28
Outline Dimension (do) inch - 25.2
Weight (G) kg - 48.080752
Mounting Holes Outer Ring (Lo) inch - 28.38
Mounting Holes Outer Ring (no) - 12
Mounting Holes Inner ring (Li) inch - 23.63
Mounting Holes Inner ring (ni) - 18
Gear Data (D2) inch - 22
Gear Data (Pd) - 4
Gear Data (z2) - 88
Maximum Gear Tooth Load (Fz) lbs - 6400
Moment Rating (Crm) ft-lbs - 49800

** Images are for representation purposes only
