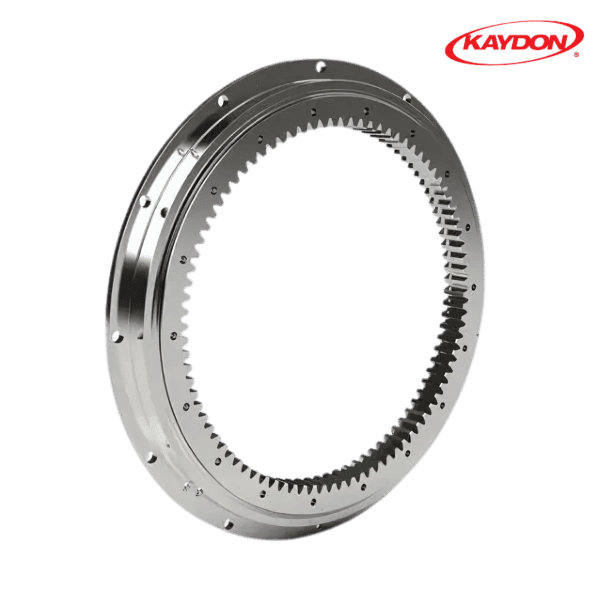

RK6-22N1Z KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - RK6-22N1Z KAYDON
Category - Slewing Ring Bearings (RK Series with Internal Gear)

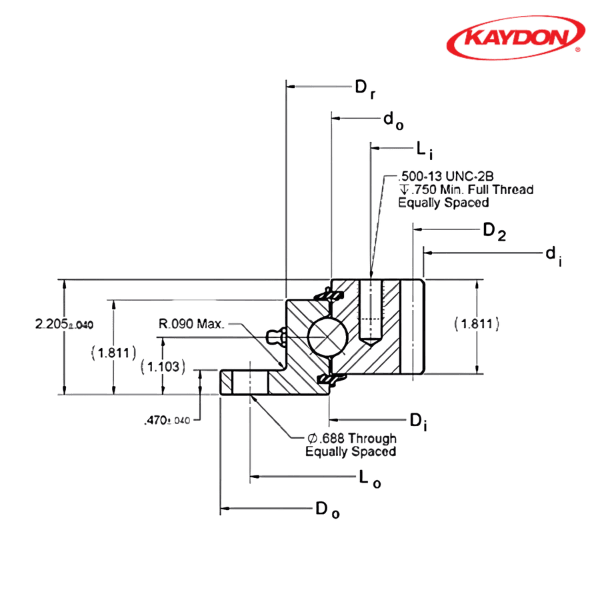

Outline Dimension (Do) inch - 25.51
Outline Dimension (di) inch - 17.6
Outline Dimension (Dr) inch - 22.99
Outline Dimension (Di) inch - 21.34
Outline Dimension (do) inch - 21.26
Weight (G) kg - 40.82328
Mounting Holes Outer Ring (Lo) inch - 24.38
Mounting Holes Outer Ring (no) - 10
Mounting Holes Inner ring (Li) inch - 19.63
Mounting Holes Inner ring (ni) - 15
Gear Data (D2) inch - 18
Gear Data (Pd) - 4
Gear Data (z2) - 72
Maximum Gear Tooth Load (Fz) lbs - 6530
Moment Rating (Crm) ft-lbs - 37700

** Images are for representation purposes only
