RF71812 RBC HEIM

Brand - RBC HEIM
Item Number - RF71812 RBC HEIM
Category - Flanged Ball Bearing (Commercial Series)

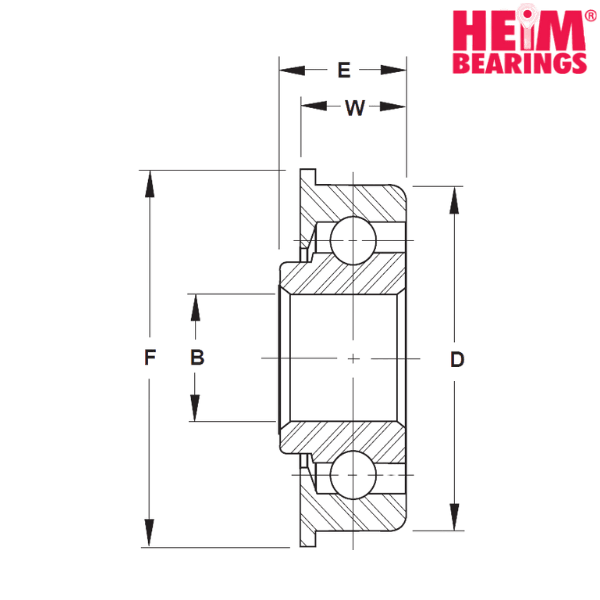

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 0.4375 (+.004 to +.001) inch
Outside Diameter (D) - 1.125 (+.002 to - .002) inch
Width (W) - 0.375 (+.005 to - .005) inch
Flange Diameter (F) - 1.25 (+.005 to - .005) inch
Overall Width (E) - 0.4375 (+.010 to - .010) inch
Number of Balls - 16 pcs.
Ball Diameter - 0.15625 inch
Load Capacity as per 50 Revolutions Per Minute - 390 lbf
Load Capacity as per 100 Revolutions Per Minute - 310 lbf
Load Capacity as per 300 Revolutions Per Minute - 165 lbf
Load Capacity as per 600 Revolutions Per Minute - 120 lbf
Load Capacity as per 1000 Revolutions Per Minute - 70 lbf

Other salient points to be noted :
• Outer Ring = Carbon steel, case hardened.
• Inner Ring = Carbon steel, case hardened.
• Balls = Carbon steel, case hardened.
• Seals = Synthetic rubber, if required.
• Shields = Steel, if required.
• Add letter “P” to suffix to indicate one seal.
• Example: RF102214P
• Add letters “PP” to suffix to indicate two seals.
• Example: RF102214PP
• Add letters “MP” to suffix to indicate mechanical shield.
• Example: RF102214MP

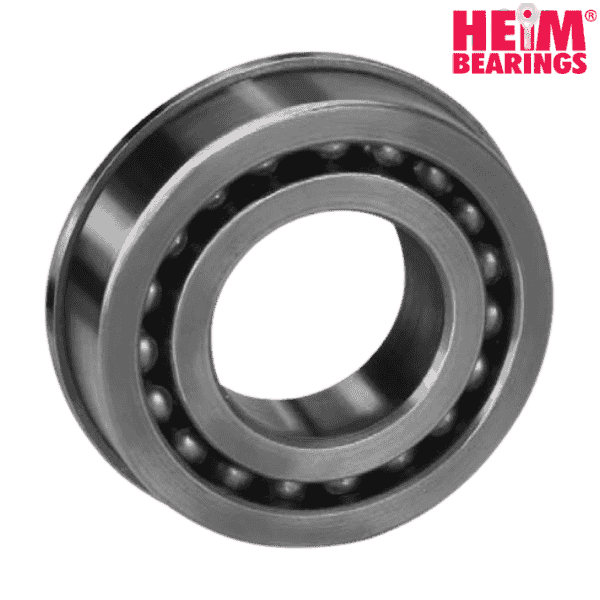

♦ ♦ Images are for representation purposes only
