REM36-SS RBC

Brand - RBC
Item Number - REM36-SS RBC
Category - Industrial Rod Ends (Male Shank, Open Type, Heavy Duty Forging)
Part Number (Open) - REM36

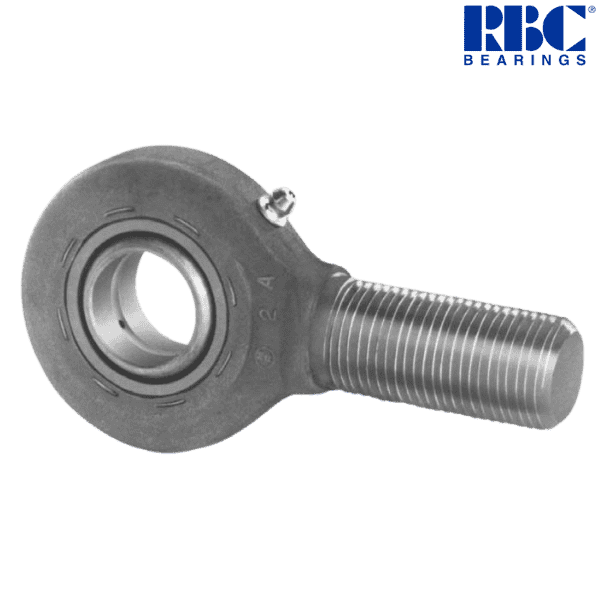

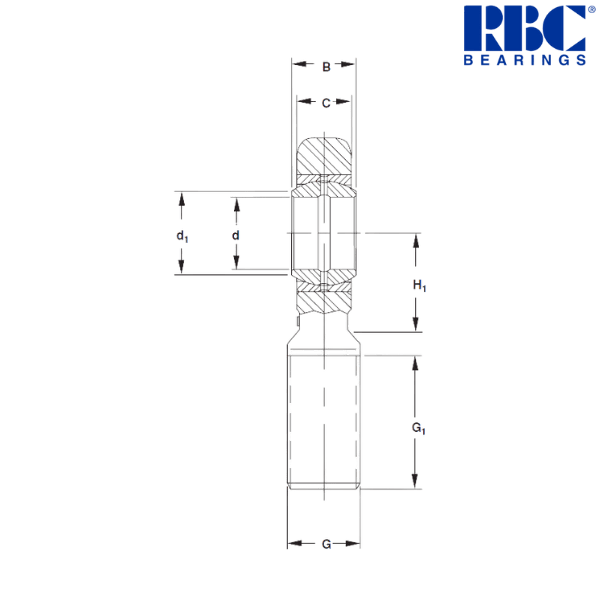

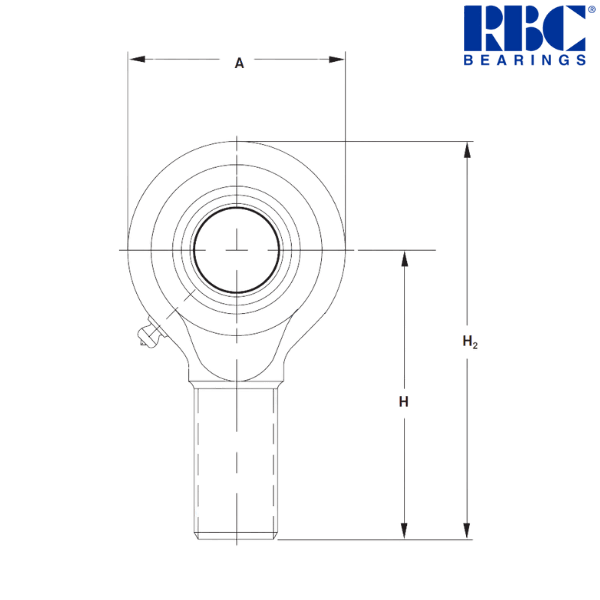

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 2.25 inch
Minimum Inside Diameter (d) - 2.2494 inch
Maximum Inside Diameter (d) - 2.25 inch
Inner Ring Width (B) - 1.969 inch
Shaft Shoulder Diameter (d1) - 2.563 inch
Maximum Tilt in Clevis (α) * - 3 deg
Length to Center (H) - 8.125 inch
Thread UNF-2A (G) ** - 2 1/4-12
Thread Length (G1) - 4.500 inch
Head Diameter (A) - 5.875 inch
Head Thickness (C) - 1.687 inch
Overall Length (H2) - 11.062 inch
Neck to Center (H1) - 2.687 inch
Diametral Clearance - 0.002/0.006 inch
Approximate Weight - 10 lb
Recommended Radial Static Load Limit - 66800 lbf
Recommended Thrust Static Load Limit - 12500 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 2.0575 kg

Other salient points to be noted :
* For sealed bearings with extended inner ring use 5 degrees
** To order left handed thread, add suffix “L” to part number shown in chart (e.g. REM 12L)

♦ ♦ Images are for representation purposes only
