REM32-ESS RBC

Brand - RBC
Item Number - REM32-ESS RBC
Category - Industrial Rod Ends (Male Shank, Open Type, Heavy Duty Forging)
Part Number (Open) - REM32-E

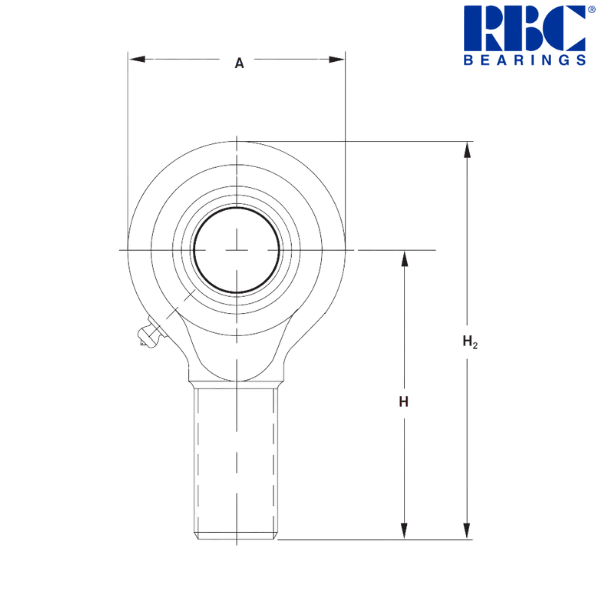

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 2 inch
Minimum Inside Diameter (d) - 1.9995 inch
Maximum Inside Diameter (d) - 2 inch
Inner Ring Width (B) - 3.000 inch
Shaft Shoulder Diameter (d1) - 2.46 inch
Maximum Tilt in Clevis (α) * - 9 deg
Length to Center (H) - 7.187 inch
Thread UNF-2A (G) ** - 2-12
Thread Length (G1) - 4.062 inch
Head Diameter (A) - 5.25 inch
Head Thickness (C) - 1.5 inch
Overall Length (H2) - 9.812 inch
Neck to Center (H1) - 2.375 inch
Diametral Clearance - 0.001/0.006 inch
Approximate Weight - 8.16 lb
Recommended Radial Static Load Limit - 52800 lbf
Recommended Thrust Static Load Limit - 11200 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.6789 kg

Other salient points to be noted :
* For sealed bearings with extended inner ring use 5 degrees
** To order left handed thread, add suffix “L” to part number shown in chart (e.g. REM 12L)

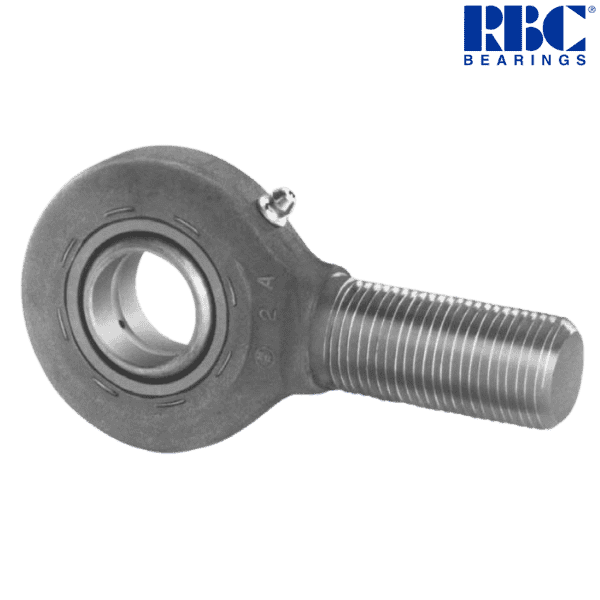

♦ ♦ Images are for representation purposes only
