REM2024-SS RBC

Brand - RBC
Item Number - REM2024-SS RBC
Category - Industrial Rod Ends (Male Shank, Open Type, Heavy Duty Forging)
Part Number (Open) - REM2024

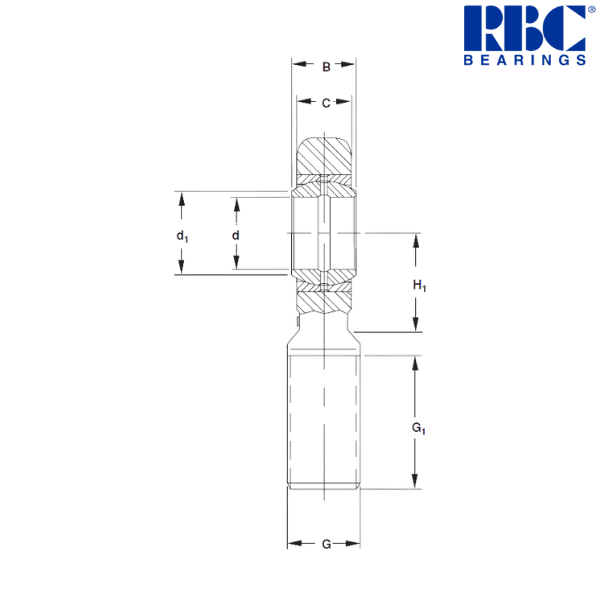

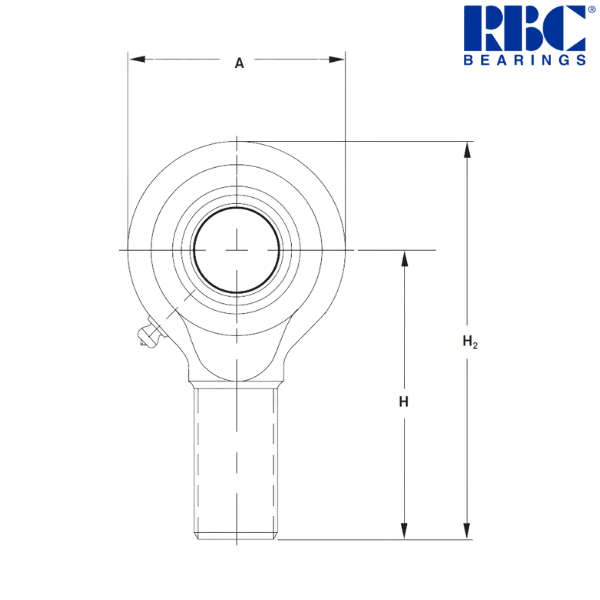

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 1.25 inch
Minimum Inside Diameter (d) - 1.2495 inch
Maximum Inside Diameter (d) - 1.25 inch
Inner Ring Width (B) - 1.390 inch
Shaft Shoulder Diameter (d1) - 1.66 inch
Maximum Tilt in Clevis (α) * - 4 deg
Length to Center (H) - 5.406 inch
Thread UNF-2A (G) ** - 1 1/2-12
Thread Length (G1) - 3.062 inch
Head Diameter (A) - 4 inch
Head Thickness (C) - 1.125 inch
Overall Length (H2) - 7.406 inch
Neck to Center (H1) - 1.75 inch
Diametral Clearance - 0.001/0.006 inch
Approximate Weight - 4.19 lb
Recommended Radial Static Load Limit - 29800 lbf
Recommended Thrust Static Load Limit - 8700 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.8621 kg

Other salient points to be noted :
* For sealed bearings with extended inner ring use 5 degrees
** To order left handed thread, add suffix “L” to part number shown in chart (e.g. REM 12L)

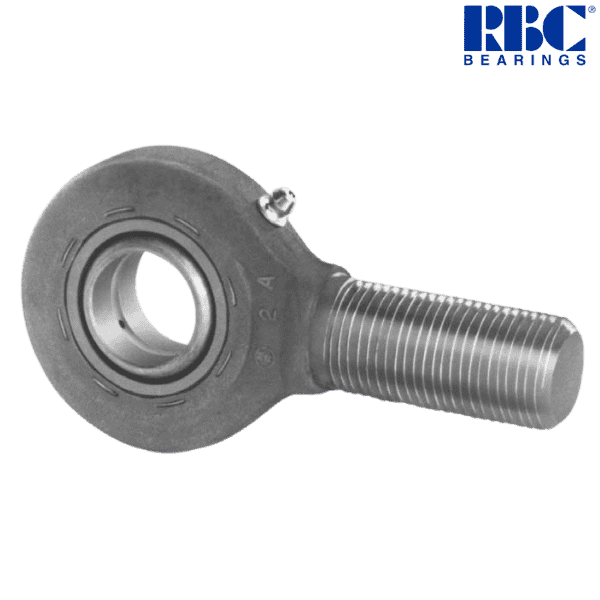

♦ ♦ Images are for representation purposes only
