REM12-ESS RBC

Brand - RBC
Item Number - REM12-ESS RBC
Category - Industrial Rod Ends (Male Shank, Open Type, Heavy Duty Forging)
Part Number (Open) - REM12-E

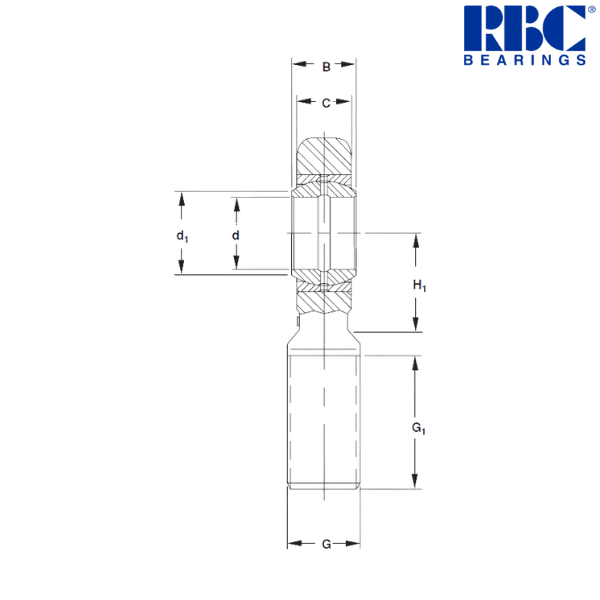

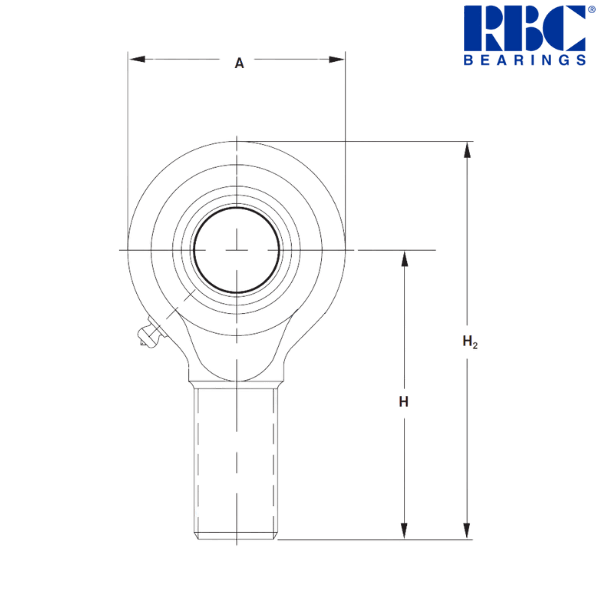

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 0.75 inch
Minimum Inside Diameter (d) - 0.7495 inch
Maximum Inside Diameter (d) - 0.75 inch
Inner Ring Width (B) - 1.125 inch
Shaft Shoulder Diameter (d1) - 0.92 inch
Maximum Tilt in Clevis (α) * - 9 deg
Length to Center (H) - 3 inch
Thread UNF-2A (G) ** - 3/4-16
Thread Length (G1) - 1.562 inch
Head Diameter (A) - 2.062 inch
Head Thickness (C) - 0.562 inch
Overall Length (H2) - 4.031 inch
Neck to Center (H1) - 1 inch
Diametral Clearance - 0.001/0.006 inch
Approximate Weight - 0.62 lb
Recommended Radial Static Load Limit - 7500 lbf
Recommended Thrust Static Load Limit - 4500 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.1276 kg

Other salient points to be noted :
* For sealed bearings with extended inner ring use 5 degrees
** To order left handed thread, add suffix “L” to part number shown in chart (e.g. REM 12L)

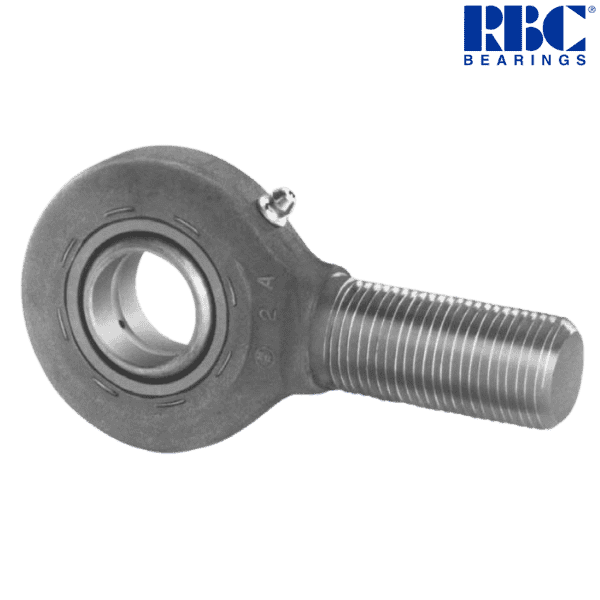

♦ ♦ Images are for representation purposes only
