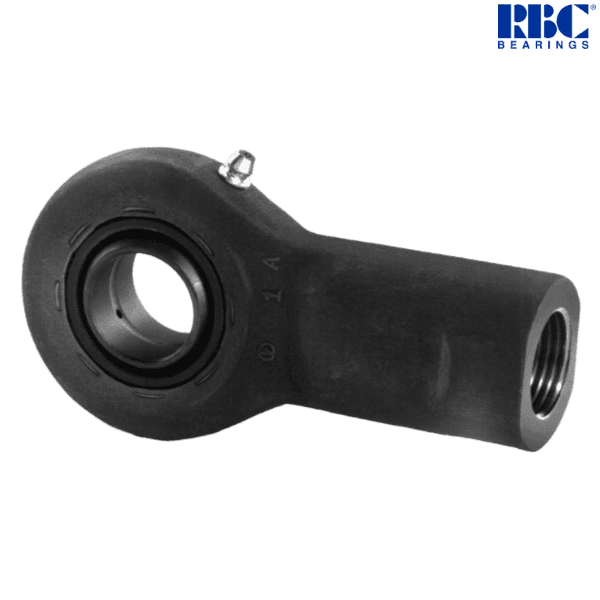

REF3640 RBC

Brand - RBC
Item Number - REF3640 RBC
Category - Industrial Rod Ends Female Shank, Heavy Duty Forging

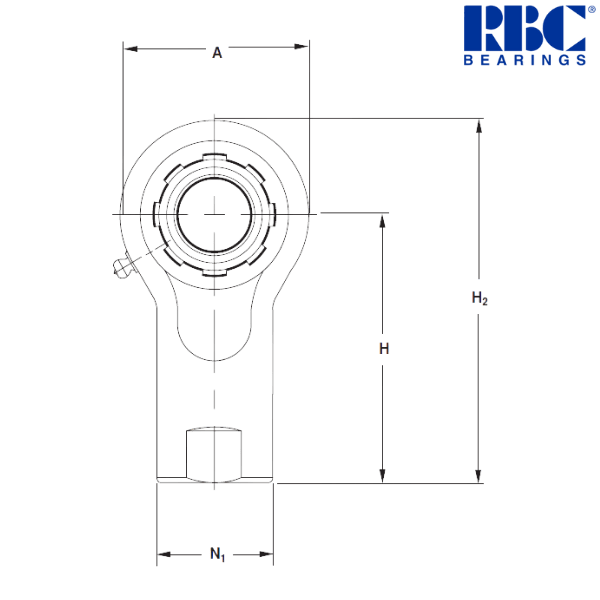

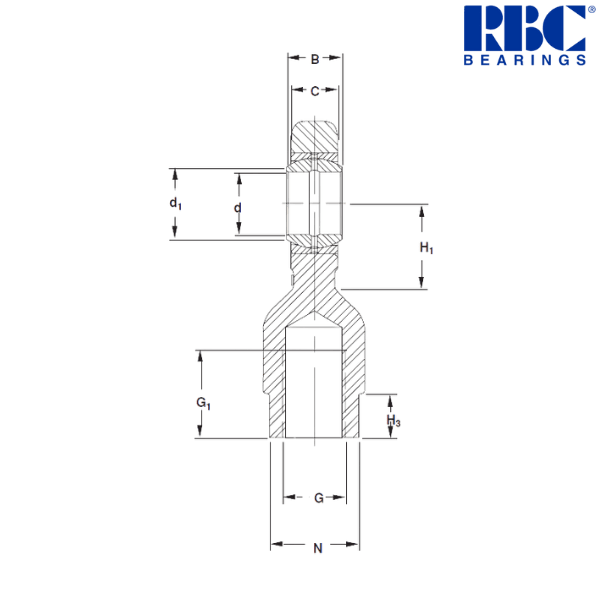

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 2.25 inch
Maximum Inside Diameter (d) - 2.25 inch
Minimum Inside Diameter (d) - 2.2494 inch
Inner Ring Width (B) - 2.318 (+0.000 to -0.005) inch
Shaft Shoulder Diameter (d1) - 2.25 inch
Maximum Tilt in Clevis (α) * - 5 deg
Length to Center (H) - 9 inch
Thread UNF-2B (G) ** - 2 1/2-12
Eff. Thread Length (G1) - 3.25 inch
Head Diameter (A) - 6.5 inch
Shank Diameter (N1) - 3.687 inch
Head Thickness (C) - 1.875 inch
Length of Flat (H3) - 1.375 inch
Overall Length (H2) - 12.25 inch
Width Across Flats (N) - 3.25 inch
Neck to Center (H1) - 3.25 inch
Diametral Clearance - 0.002/0.006 inch
Approximate Weight - 15.60 lb
Recommended Radial Static Load Limit - 82800 lbf
Recommended Thrust Static Load Limit - 13800 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 7.0760 kg

Other salient points to be noted :
* For sealed bearings with extended inner ring use 5 degrees.
** To order left handed thread, add suffix “L” to part number shown in chart (e.g. REF 12L)
