REF32 RBC

Brand - RBC
Item Number - REF32 RBC
Category - Industrial Rod Ends Female Shank, Heavy Duty Forging

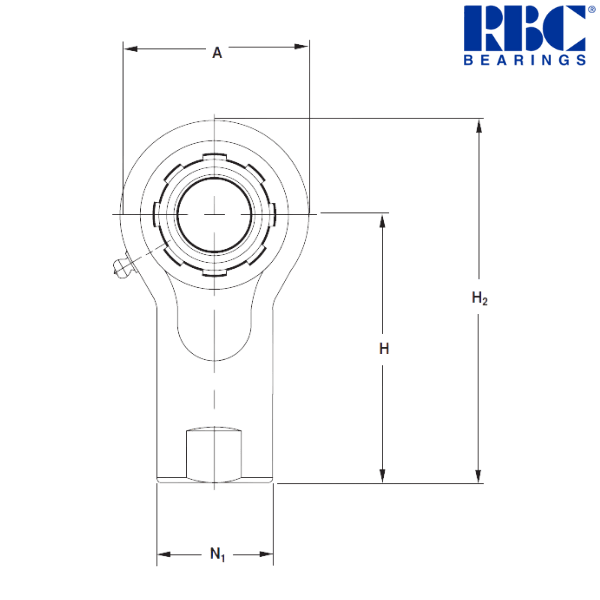

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 2 inch
Maximum Inside Diameter (d) - 2 inch
Minimum Inside Diameter (d) - 1.9995 inch
Inner Ring Width (B) - 1.750 (+0.000 to -0.005) inch
Shaft Shoulder Diameter (d1) - 2.266 inch
Maximum Tilt in Clevis (α) * - 3 deg
Length to Center (H) - 7.187 inch
Thread UNF-2B (G) ** - 2-12
Eff. Thread Length (G1) - 2.75 inch
Head Diameter (A) - 5.25 inch
Shank Diameter (N1) - 3.125 inch
Head Thickness (C) - 1.5 inch
Length of Flat (H3) - 1.187 inch
Overall Length (H2) - 9.812 inch
Width Across Flats (N) - 2.75 inch
Neck to Center (H1) - 2.5 inch
Diametral Clearance - 0.001/0.006 inch
Approximate Weight - 9.02 lb
Recommended Radial Static Load Limit - 52800 lbf
Recommended Thrust Static Load Limit - 11200 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 4.0914 kg

Other salient points to be noted :
* For sealed bearings with extended inner ring use 5 degrees.
** To order left handed thread, add suffix “L” to part number shown in chart (e.g. REF 12L)

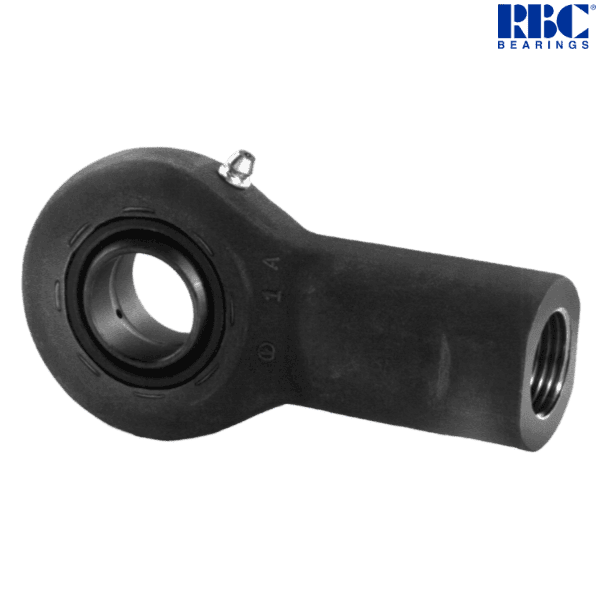

♦ ♦ Images are for representation purposes only
