REF22 RBC

Brand - RBC
Item Number - REF22 RBC

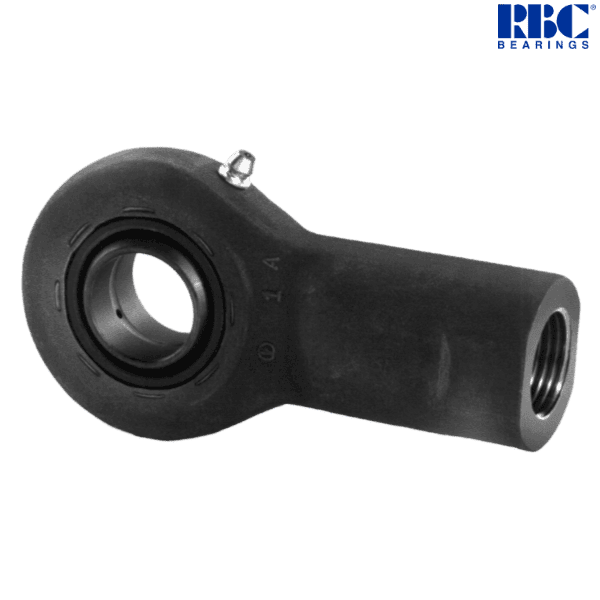

Category - Industrial Rod Ends Female Shank, Heavy Duty Forging

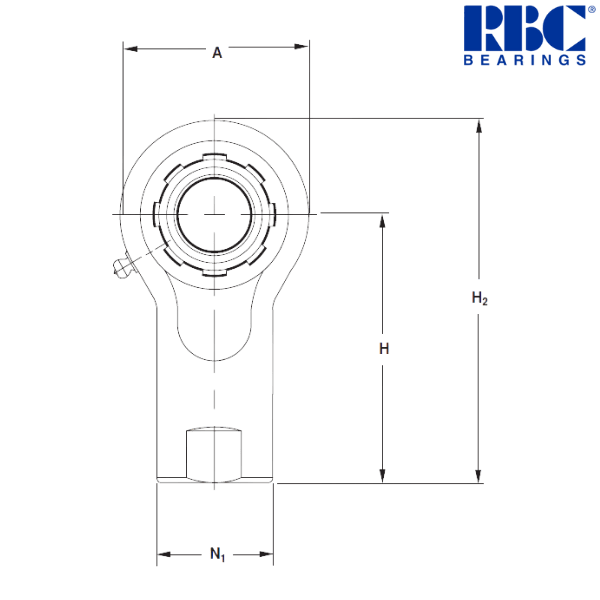

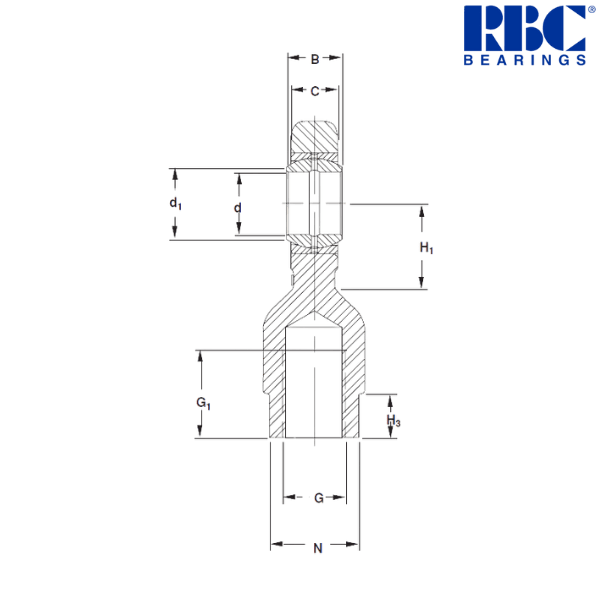

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 1.375 inch
Maximum Inside Diameter (d) - 1.375 inch
Minimum Inside Diameter (d) - 1.3745 inch
Inner Ring Width (B) - 1.187 (+0.000 to -0.005) inch
Shaft Shoulder Diameter (d1) - 1.516 inch
Maximum Tilt in Clevis (α) * - 2 deg
Length to Center (H) - 5 inch
Thread UNF-2B (G) ** - 1 3/8-12
Eff. Thread Length (G1) - 2 inch
Head Diameter (A) - 3.625 inch
Shank Diameter (N1) - 2 inch
Head Thickness (C) - 1.031 inch
Length of Flat (H3) - 0.875 inch
Overall Length (H2) - 6.812 inch
Width Across Flats (N) - 1.75 inch
Neck to Center (H1) - 1.875 inch
Diametral Clearance - 0.001/0.006 inch
Approximate Weight - 3.12 lb
Recommended Radial Static Load Limit - 23900 lbf
Recommended Thrust Static Load Limit - 7900 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 1.4152 kg

Other salient points to be noted :
* For sealed bearings with extended inner ring use 5 degrees.
** To order left handed thread, add suffix “L” to part number shown in chart (e.g. REF 12L)

♦ ♦ Images are for representation purposes only
