REF14-E RBC

Brand - RBC
Item Number - REF14-E RBC
Category - Industrial Rod Ends Female Shank, Heavy Duty Forging

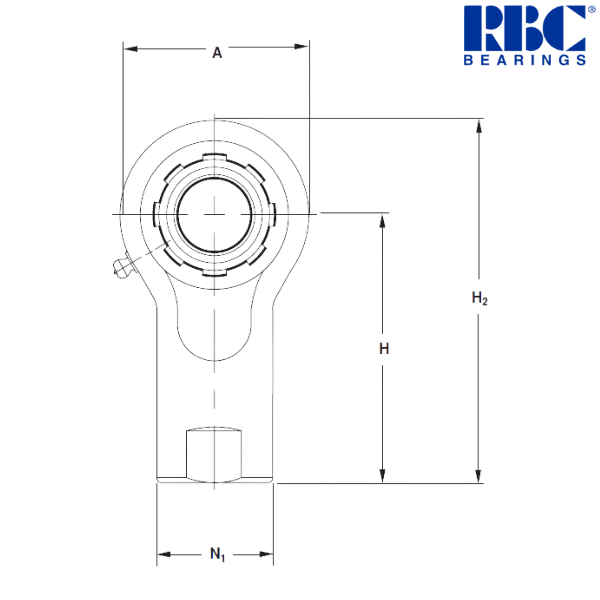

Principal Dimensions & Load Ratings (Imperial) :
Nominal Inside Diameter (d) - 0.875 inch
Maximum Inside Diameter (d) - 0.875 inch
Minimum Inside Diameter (d) - 0.8745 inch
Inner Ring Width (B) - 1.312 (+0.000 to -0.005) inch
Shaft Shoulder Diameter (d1) - 1.07 inch
Maximum Tilt in Clevis (α) * - 9 deg
Length to Center (H) - 3.375 inch
Thread UNF-2B (G) ** - 7/8-14
Eff. Thread Length (G1) - 1.281 inch
Head Diameter (A) - 2.375 inch
Shank Diameter (N1) - 1.312 inch
Head Thickness (C) - 0.656 inch
Length of Flat (H3) - 0.671 inch
Overall Length (H2) - 4.562 inch
Width Across Flats (N) - 1.125 inch
Neck to Center (H1) - 1.187 inch
Diametral Clearance - 0.001/0.006 inch
Approximate Weight - 1.03 lb
Recommended Radial Static Load Limit - 10200 lbf
Recommended Thrust Static Load Limit - 5200 lbf

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.4672 kg

Other salient points to be noted :
* For sealed bearings with extended inner ring use 5 degrees.
** To order left handed thread, add suffix “L” to part number shown in chart (e.g. REF 12L)

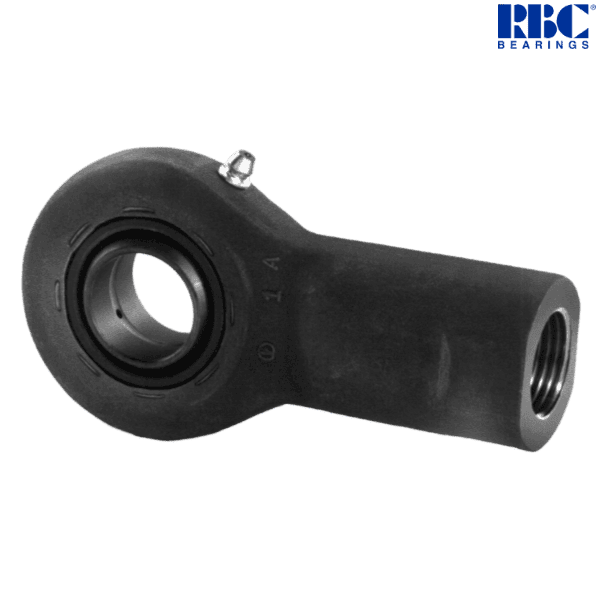

♦ ♦ Images are for representation purposes only
