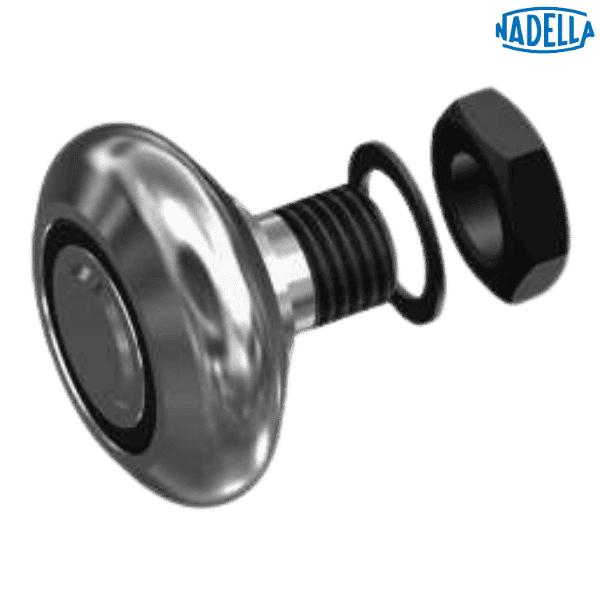

RCSR 63 NADELLA

Brand - NADELLA
Item Number - RCSR 63 NADELLA
Category - Guide Rollers with Single Row Ball Bearing for LS Rail (Eccentric)

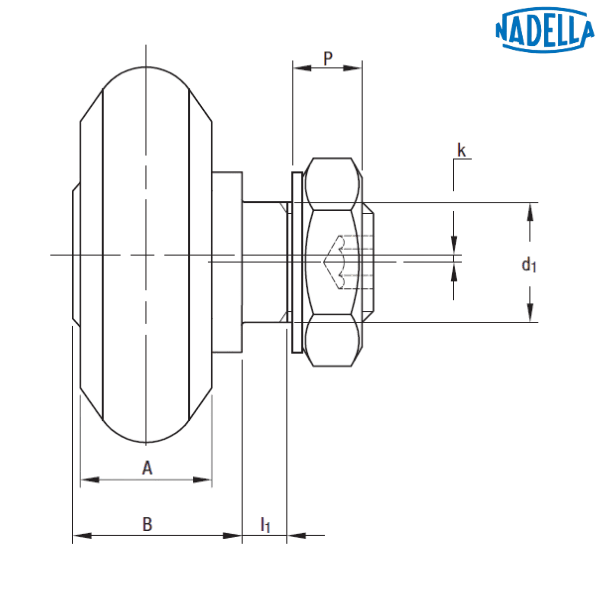

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 50 mm
Dimension (R) - 7 mm
Dimension (d1) - 16 (H7) mm
Dimension (d) - M16 x 1.5
Dimension (m) - 12.75 mm
Minimum Dimension (S) - 5.25 mm
Dimension (P) - 9.2 mm
Dimension (L) - 39.5 mm
Dimension (A) - 17 mm
Dimension (B) - 22.25 mm
Dimension (l1) - 6.25 mm
Dimension (M) - 24 mm
Dimension (SW1) - 6 mm
Dimension (SW2) - 24 mm
Dimension (k) - 1 mm
Guide - LS 63
Dynamic Load (Cw*) - 14200 N
Radial Limit Load (Fr) - 6500 N
Axial Limit Load (Fa) - 2200 N
Life Coefficient (X) - 1 mm
Life Coefficient (Y) - 2.8 mm
Torque Wrench Settings** - 64 Nm
Weight - 0.255 kg

Other salient points to be noted:
* Cw = load for lifetime of 100 km
** The tightening torques apply to non-lubricated threads; for lubricated threads the values have to be multiplied by 0.8

• Guide rollers will be supplied with washers and nuts (DIN 439B)
• Contact angle α for the load calculation: 55°
• Standard seals type RS

♦ ♦ Images are for representation purposes only
