RCL 35.10 NADELLA

Brand - NADELLA
Item Number - RCL 35.10* NADELLA

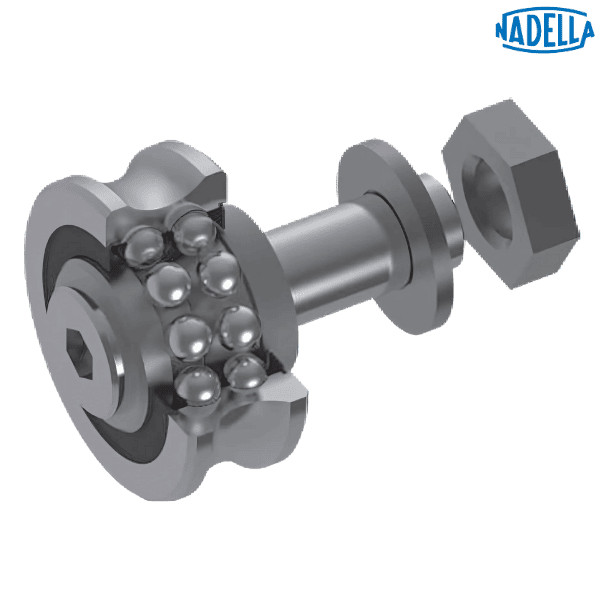

Category - Guide Roller with Gothic Arch Profile, Based on Angular Contact Ball Bearing (Concentric)

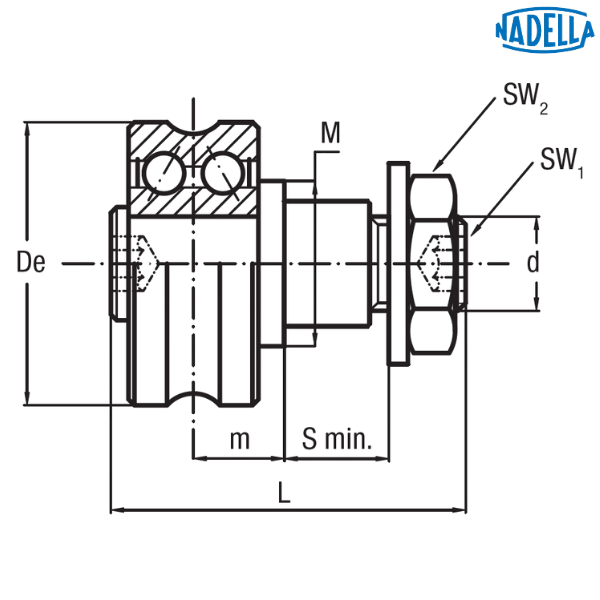

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 35 mm
Dimension (dB) - 10 mm
Dimension (d1) - 10 (H7) mm
Dimension (d) - M10 x 1.25
Dimension (Y) - 20.65 mm
Dimension (m) - 10.5 mm
Minimum Dimension (S) - 14 mm
Dimension (P) - 7 mm
Dimension (L) - 43 mm
Dimension (A) - 15.9 mm
Dimension (B) - 20.5 mm
Dimension (l1) - 13 mm
Dimension (M) - 18 mm
Dimension (SW1) - 5 mm
Dimension (SW2) - 17 mm
Dimension (k) - 0.75 mm
Recommended Pairings - LM 65
Dynamic Load (Cw) ** - 7800 N
Radial Limit Load (Fr) - 2400 N
Axial Limit Load (Fa) - 650 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 2.93
Torque Wrench Settings*** - 20 Nm
Weight - 0.13 kg

Description of Prefix:
RCL - Guide rollers with “gothic arch” profile, with a double row of balls with oblique contact, for LM rails of U-Line system

Other salient points to be noted:
* Available in stainless steel (suffix NX)
** Cw basic load for 100 km
*** The torque wrench settings are given for non-lubricated threads; for lubricated threads, multiply figure by 0.8

• The guide rollers are complete with self-locking washers and hexagonal nut (DIN 439B) for fitting
• Pressure angle α for load calculation: 60°
• Standard shields ZZ type for RCL and RCP; NBR seals type RS for PFV

♦ ♦ Images are for representation purposes only
