RCL 17.06 NADELLA

Brand - NADELLA
Item Number - RCL 17.06* NADELLA
Category - Guide Roller with Gothic Arch Profile, Based on Angular Contact Ball Bearing (Concentric)

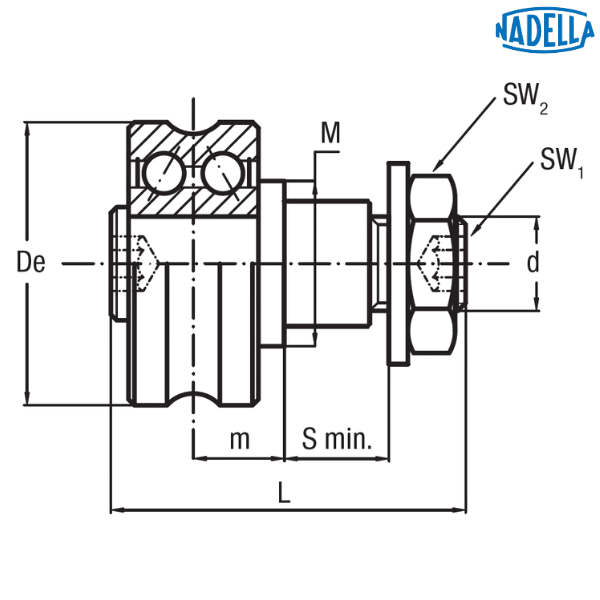

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 17 mm
Dimension (dB) - 6 mm
Dimension (d1) - 5 (H7) mm
Dimension (d) - M5 x 0.8
Dimension (Y) - 10.5 mm
Dimension (m) - 6 mm
Minimum Dimension (S) - 6 mm
Dimension (P) - 3.7 mm
Dimension (L) - 21 mm
Dimension (A) - 7 mm
Dimension (B) - 11 mm
Dimension (l1) - 5.2 mm
Dimension (M) - 9 mm
Dimension (SW1) - 2.5 mm
Dimension (SW2) - 8 mm
Dimension (k) - 0.25 mm
Recommended Pairings - LM 30
Dynamic Load (Cw) ** - 1400 N
Radial Limit Load (Fr) - 530 N
Axial Limit Load (Fa) - 150 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 3.28
Torque Wrench Settings*** - 3 Nm
Weight - 0.02 kg

Description of Prefix:
RCL - Guide rollers with “gothic arch” profile, with a double row of balls with oblique contact, for LM rails of U-Line system

Other salient points to be noted:
* Available in stainless steel (suffix NX)
** Cw basic load for 100 km
*** The torque wrench settings are given for non-lubricated threads; for lubricated threads, multiply figure by 0.8

• The guide rollers are complete with self-locking washers and hexagonal nut (DIN 439B) for fitting
• Pressure angle α for load calculation: 60°
• Standard shields ZZ type for RCL and RCP; NBR seals type RS for PFV

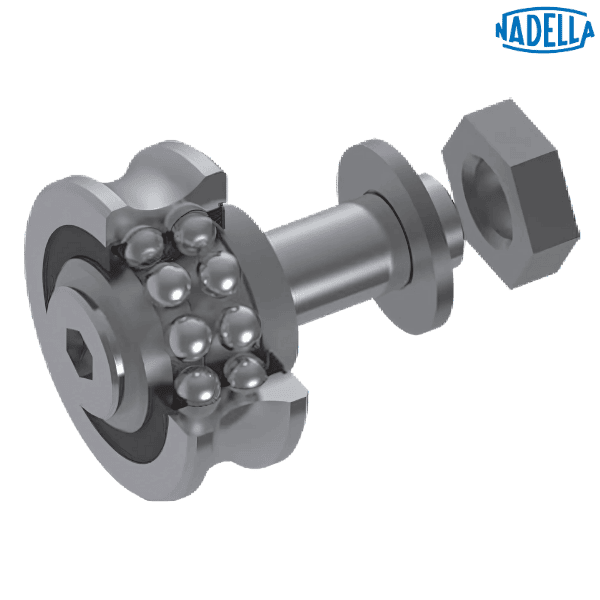

♦ ♦ Images are for representation purposes only
