RBY 5 RBC

Brand - RBC
Item Number - RBY 5 RBC
Also Known As - RBY5
Long-Life Yoke Rollers (with Crowned Outer Ring) - CRBY 5
Category - Long-Life Yoke Rollers

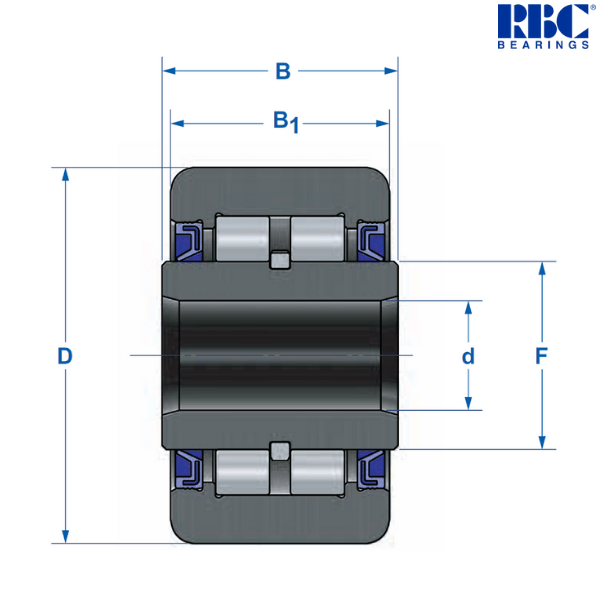

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter (D) - 5 (+ .000 to - .001) inch
Roller Width (B1) - 2.75 (+ .000 to - .005) inch
Crown Radius (CR) - 48 inch
Nominal Inside Diameter (d) - 1.75 inch
Minimum Inside Diameter (d) - 1.7495 inch
Maximum Inside Diameter (d) - 1.7501 inch
Overall Width (B) - 2.875 (+ .005 to - .010) inch
Shaft Shoulder (F) - 2.75 inch
Approximate Weight - 12.3 lbs
Speed Limit - 2000 rpm
Dynamic Capacity (C) - 71000 lbf
Static Capacity (C0) - 110000 lbf *
Maximum Allowable Load - 43700 lbf
Track Capacity @ 40 Rc - 35000 lbf
Maximum Transition Fit - 1.7496 inch
Minimum Transition Fit - 1.7491 inch
Maximum Press Fit - 1.7508 inch
Minimum Press Fit - 1.7503 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 5.578 kg

Description of Prefixes :
RBY - Yoke Roller

Description of Possible Suffixes :
OH - Oil Holes
LU - Special Grease
NS - Without Seals
CR - Corrosion Resistant
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• To specify RBC Roller® with lubrication holes, add OH suffix.
• Seals can be removed for flow-through lubrication.
• To specify RBC Roller® without seals, add NS suffix.

* Bearing Static Capacity provided for comparison only.

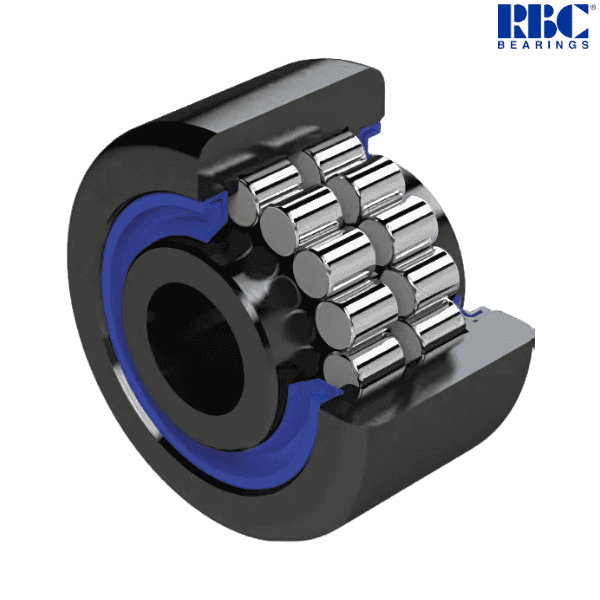

♦ ♦ Images are for representation purposes only
