Description
Brand - NADELLA
Item Number - RAXPZ 460 NADELLA
Category - Combined Bearings with Incorporate Thrust Plate

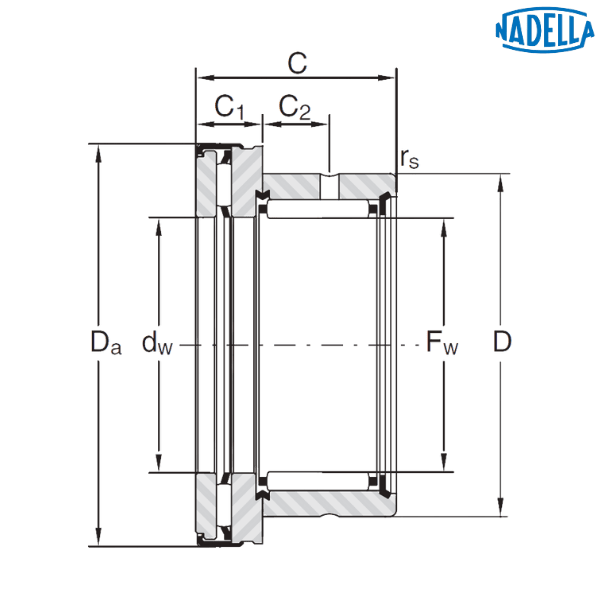

Principal Dimensions & Load Ratings (Metric) :
Diameter of the Inner Raceway (Fw) - 60 mm
Outer Diameter (D) - 72 mm
Width (C) - 32 mm
Shaft Diameter (∅) - 60 mm
Dimension (da) - 60 mm
Dimension (Da) - 86 mm
Dimension (C1) - 11 mm
Dimension (C2) - 11 mm
Minimum Chamfer Dimension (rs) - 1.3 mm
Radial Dynamic Load Rating (C) - 31.9 kN
Radial Static Load Rating (C0) - 78.1 kN
Axial Dynamic Load Rating (C) - 31.5 kN
Axial Static Load Rating (C) - 193 kN
Speed Rating - 3500 rpm
Weight - 0.365 kg
Description of Prefix :
RAXPZ 400 - Needle Thrust Bearing with retained thrust plate

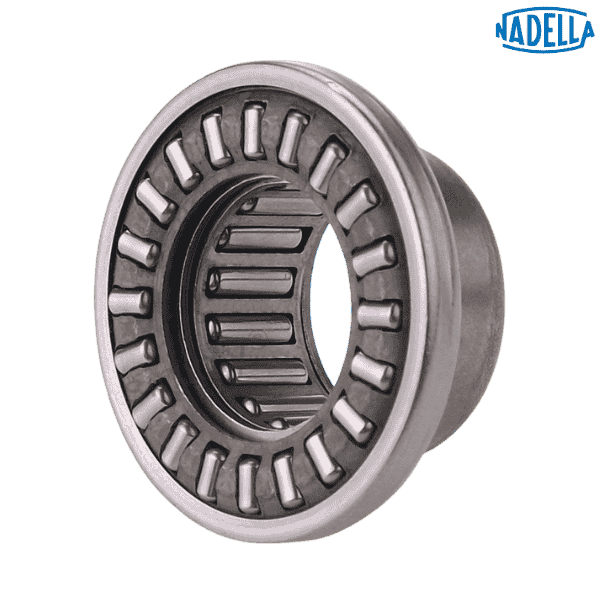

♦ ♦ Images are for representation purposes only
