Description
Brand - NADELLA
Item Number - RAXPZ 445 NADELLA
Category - Combined Bearings with Incorporate Thrust Plate

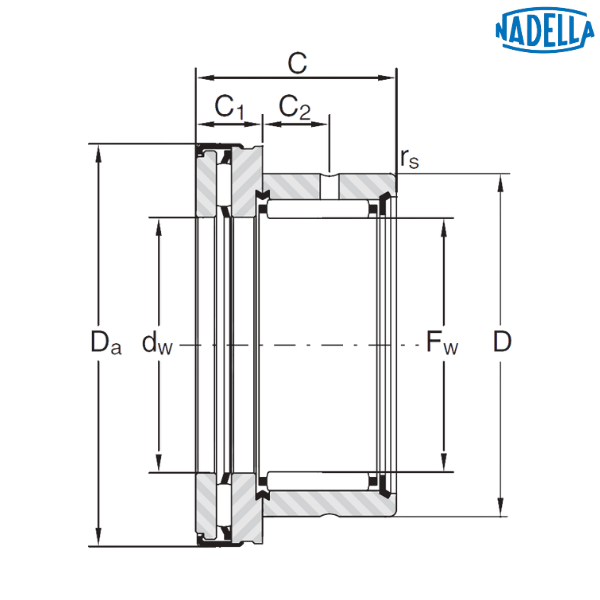

Principal Dimensions & Load Ratings (Metric) :
Diameter of the Inner Raceway (Fw) - 45 mm
Outer Diameter (D) - 58 mm
Width (C) - 27 mm
Shaft Diameter (∅) - 45 mm
Dimension (da) - 45 mm
Dimension (Da) - 66 mm
Dimension (C1) - 9 mm
Dimension (C2) - 9 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Radial Dynamic Load Rating (C) - 24.9 kN
Radial Static Load Rating (C0) - 51.8 kN
Axial Dynamic Load Rating (C) - 21.8 kN
Axial Static Load Rating (C) - 109 kN
Speed Rating - 4500 rpm
Weight - 0.216 kg
Description of Prefix :
RAXPZ 400 - Needle Thrust Bearing with retained thrust plate

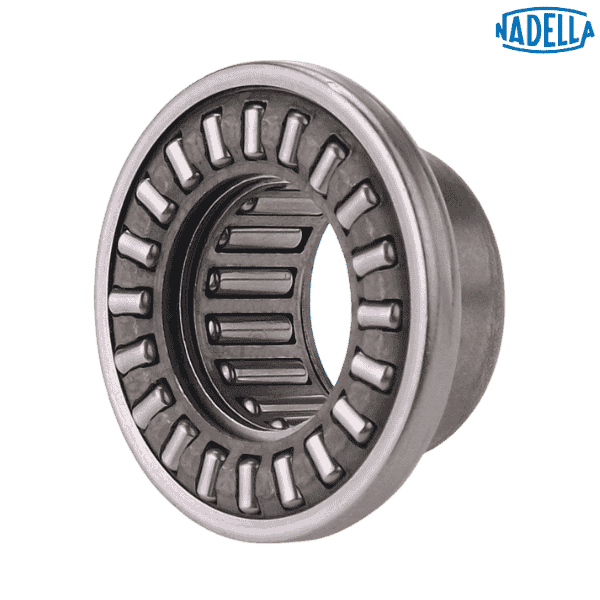

♦ ♦ Images are for representation purposes only
