Description
Brand - NADELLA
Item Number - RAXPZ 430 NADELLA
Category - Combined Bearings with Incorporate Thrust Plate

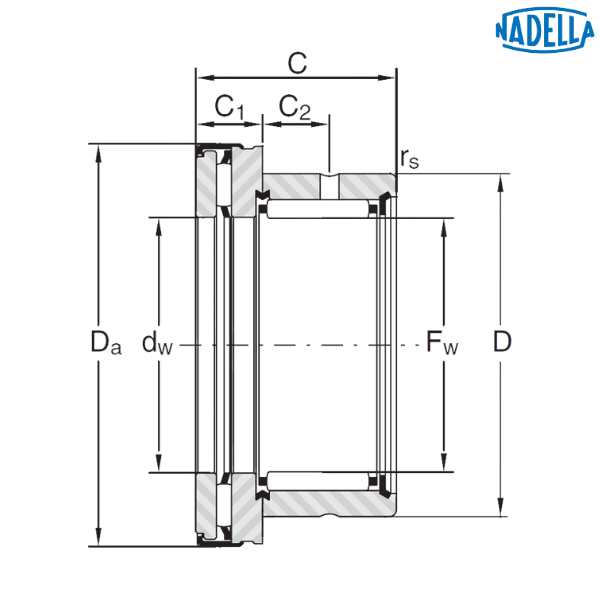

Principal Dimensions & Load Ratings (Metric) :
Diameter of the Inner Raceway (Fw) - 30 mm
Outer Diameter (D) - 42 mm
Width (C) - 27 mm
Shaft Diameter (∅) - 30 mm
Dimension (da) - 30 mm
Dimension (Da) - 48 mm
Dimension (C1) - 9 mm
Dimension (C2) - 9 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Radial Dynamic Load Rating (C) - 20.2 kN
Radial Static Load Rating (C0) - 34.6 kN
Axial Dynamic Load Rating (C) - 14.5 kN
Axial Static Load Rating (C) - 57 kN
Speed Rating - 6500 rpm
Weight - 0.133 kg
Description of Prefix :
RAXPZ 400 - Needle Thrust Bearing with retained thrust plate

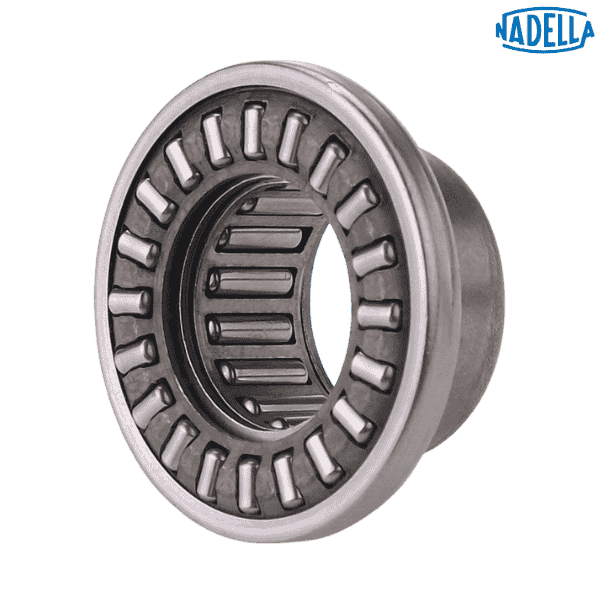

♦ ♦ Images are for representation purposes only
