RAXF 725 NADELLA

Brand - NADELLA
Item Number - RAXF 725 NADELLA
Category - Closed Type Combined Bearing

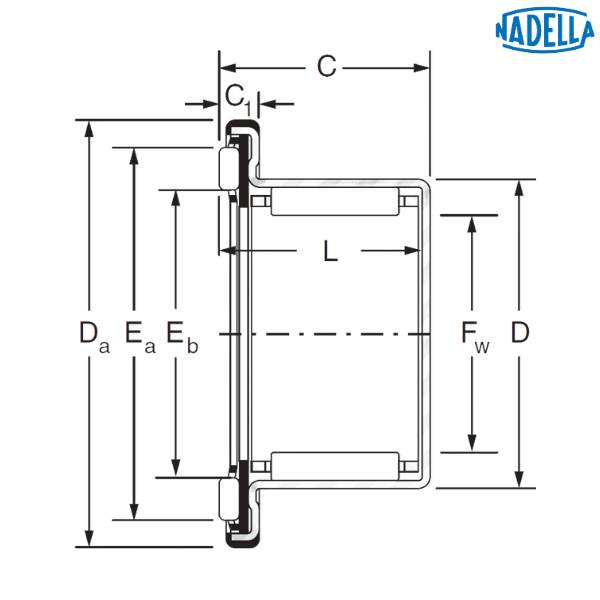

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 25 mm
Diameter of Inner Raceway (Fw) - 25 mm
Outer Diameter (D) - 33 mm
Width (C) - 22.2 mm
Dimension (Da) - 45.5 mm
Dimension (Eb) - 30 mm
Dimension (Ea) - 39.6 mm
Dimension (C1) - 4.2 mm
Dimension (L) - 21.2 mm
Radial Dynamic Load Rating (C) - 20.5 kN
Radial Static Load Rating (C0) - 32 kN
Axial Dynamic Load Rating (C) - 13.7 kN
Axial Static Load Rating (C0) - 52 kN
Radial Limit Load - 10.5 kN
Axial Limit Load - 22 kN
Speed Rating - 7200 rpm
Weight - 0.06 kg
Housing (∅) - 33 mm
GO Plug- Gauges - 25.015 mm
NO-GO Plug- Gauges - 25.041 mm
Compatible Inner Ring - JR 20x25x20.5
Compalible Thin Thrust Plate - CP 25 42
Compalible Thick Thrust Plate - CP 3 25 42

Description of Prefix :
RAXF 700 - Needle combined bearing with thin outer ring, closed end

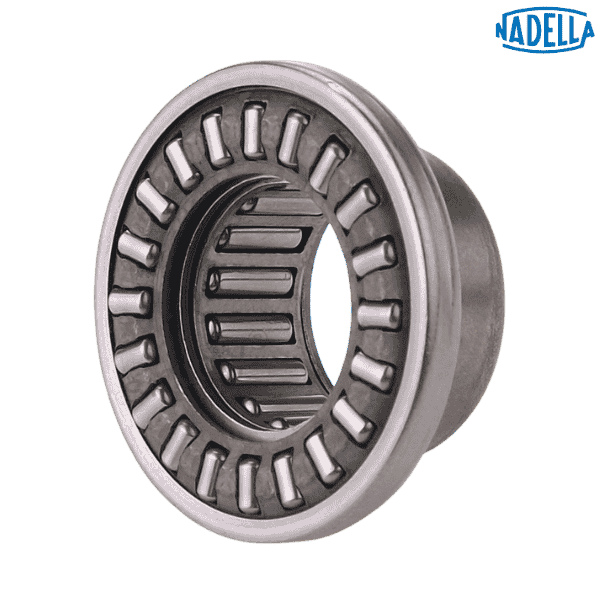

♦ ♦ Images are for representation purposes only
