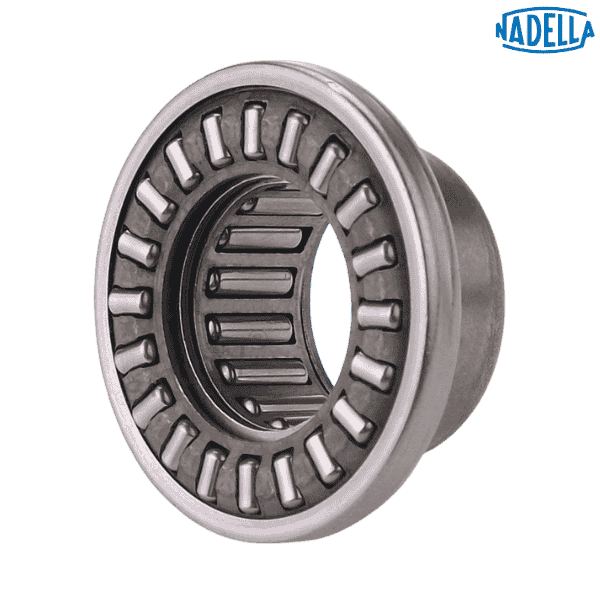

RAXF 714 NADELLA

Brand - NADELLA
Item Number - RAXF 714 NADELLA
Category - Closed Type Combined Bearing

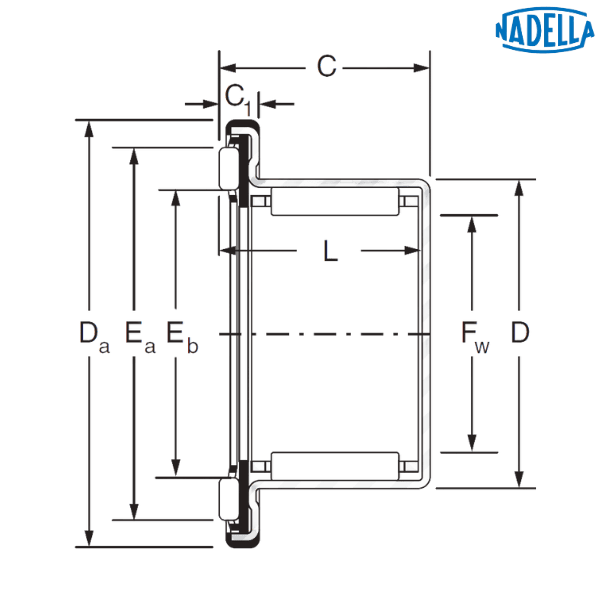

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 14 mm
Diameter of Inner Raceway (Fw) - 14 mm
Outer Diameter (D) - 20 mm
Width (C) - 14.2 mm
Dimension (Da) - 29.5 mm
Dimension (Eb) - 17 mm
Dimension (Ea) - 24.6 mm
Dimension (C1) - 4.2 mm
Dimension (L) - 13.2 mm
Radial Dynamic Load Rating (C) - 6.9 kN
Radial Static Load Rating (C0) - 8.5 kN
Axial Dynamic Load Rating (C) - 7.4 kN
Axial Static Load Rating (C0) - 20 kN
Radial Limit Load - 2.9 kN
Axial Limit Load - 12.5 kN
Speed Rating - 11500 rpm
Weight - 0.02 kg
Housing (∅) - 20 mm
GO Plug- Gauges - 14.009 mm
NO-GO Plug- Gauges - 14.035 mm
Compatible Inner Ring - JR 10x14x12
Compalible Thin Thrust Plate - CP 14 26
Compalible Thick Thrust Plate - CP 2 14 26

Description of Prefix :
RAXF 700 - Needle combined bearing with thin outer ring, closed end
