RAX430 NADELLA

Brand - NADELLA
Item Number - RAX430 NADELLA
Category - Combined Bearing with Incorporate Thrust Plate

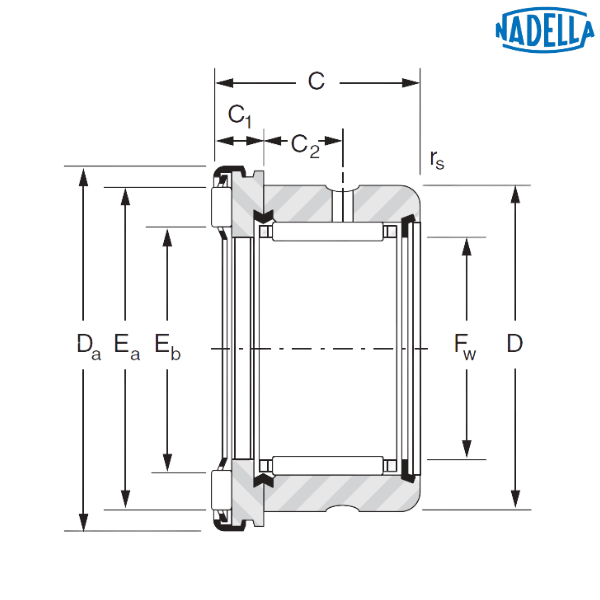

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 30 mm
Diameter of Inner Raceway (Fw) - 30 mm
Length (C) - 24 mm
Outer Diameter (D) - 42 mm
Outer Diameter (Da) - 47 mm
Dimension (Eb) - 32.7 mm
Dimension (Ea) - 42.4 mm
Dimension (C1) - 6 mm
Dimension (C2) - 9 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Radial Dynamic Load Rating (C) - 20.2 kN
Radial Static Load Rating (C0) - 34.6 kN
Axial Dynamic Load Rating (C) - 14.5 kN
Axial Static Load Rating (C0) - 57 kN
Speed Rating - 6500 rpm
Weight - 0.111 kg
Compatible Inner Ring - JR 25x30x20
Compalible Thin Thrust Plate - CP 30 47
Compalible Thick Thrust Plate - CP 3 30 47

Description of Prefix :
RAX 400 - Needle combined bearing with needle thrust cage

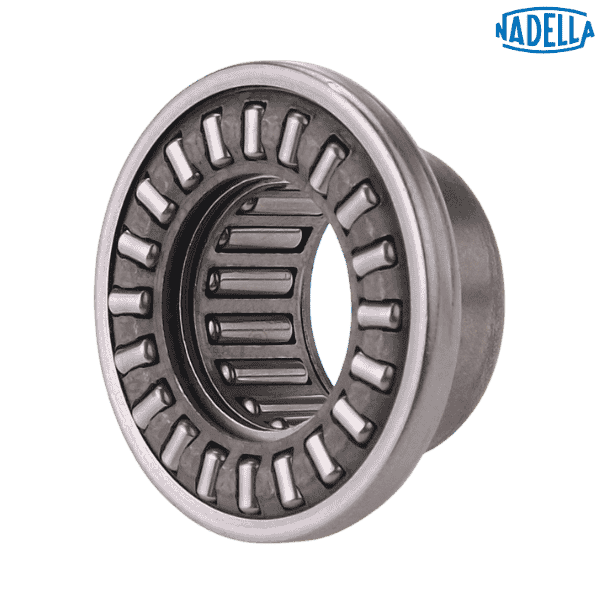

♦ ♦ Images are for representation purposes only
