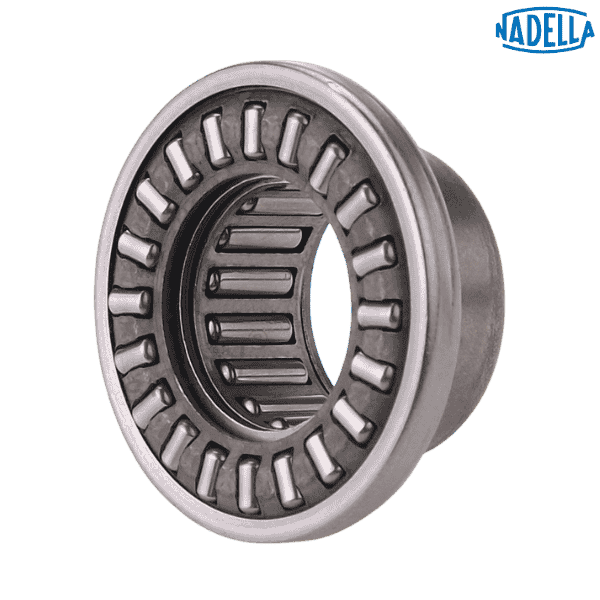

RAX 745 NADELLA

Brand - NADELLA
Item Number - RAX 745 NADELLA
Category - Open Type Combined Bearing

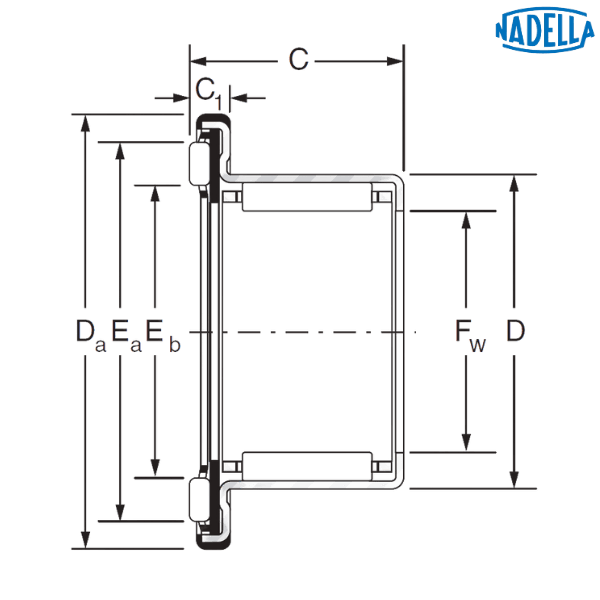

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 45 mm
Diameter of Inner Raceway (Fw) - 45 mm
Outer Diameter (D) - 52 mm
Width (C) - 22.2 mm
Dimension (Da) - 66.5 mm
Dimension (Eb) - 48 mm
Dimension (Ea) - 59.9 mm
Dimension (C1) - 4.2 mm
Dimension (L) - 21.2 mm
Radial Dynamic Load Rating (C) - 24.8 kN
Radial Static Load Rating (C0) - 55 kN
Axial Dynamic Load Rating (C) - 21.8 kN
Axial Static Load Rating (C0) - 109 kN
Radial Limit Load - 17 kN
Axial Limit Load - 32 kN
Speed Rating - 4500 rpm
Weight - 0.088 kg
Housing (∅) - 52 mm
GO Plug- Gauges - 45.015 mm
NO-GO Plug- Gauges - 45.041 mm
Compatible Inner Ring - JR 40x45x20.5
Compalible Thin Thrust Plate - CP 45 65
Compalible Thick Thrust Plate - CP 3 45 65

Description of Prefix :
RAX 700 - Needle combined bearing with thin outer ring, open
