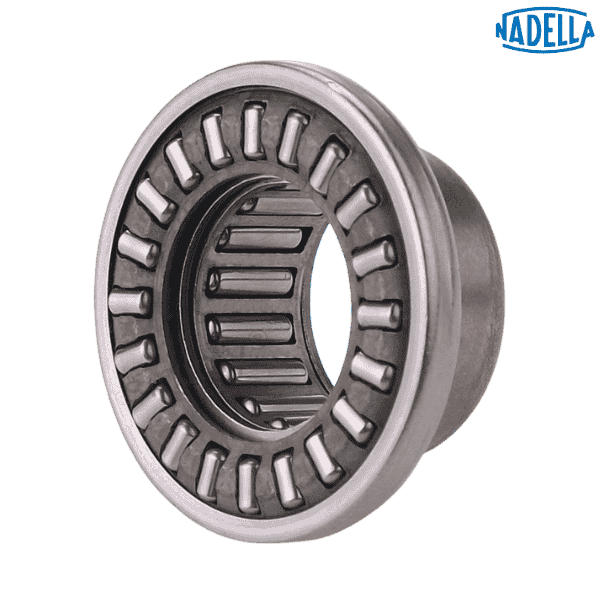

RAX 735 NADELLA

Brand - NADELLA
Item Number - RAX 735 NADELLA
Category - Open Type Combined Bearing

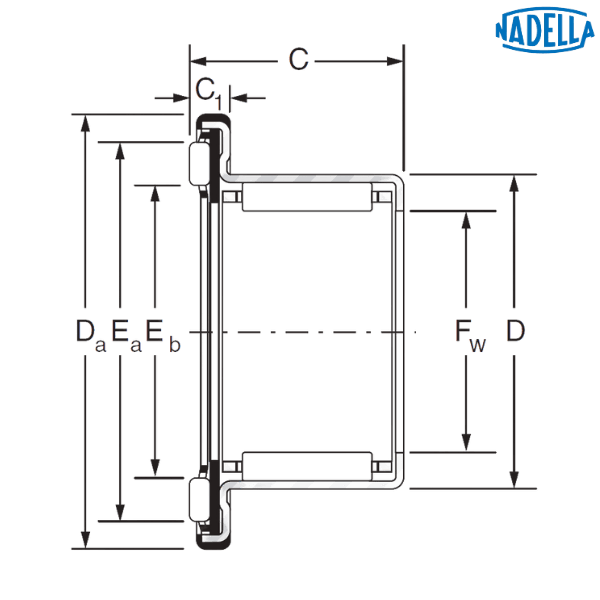

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 35 mm
Diameter of Inner Raceway (Fw) - 35 mm
Outer Diameter (D) - 43 mm
Width (C) - 22.2 mm
Dimension (Da) - 56.5 mm
Dimension (Eb) - 39 mm
Dimension (Ea) - 50.9 mm
Dimension (C1) - 4.2 mm
Dimension (L) - 21.2 mm
Radial Dynamic Load Rating (C) - 24.5 kN
Radial Static Load Rating (C0) - 45 kN
Axial Dynamic Load Rating (C) - 19.4 kN
Axial Static Load Rating (C0) - 88 kN
Radial Limit Load - 14.3 kN
Axial Limit Load - 27 kN
Speed Rating - 5500 rpm
Weight - 0.075 kg
Housing (∅) - 43 mm
GO Plug- Gauges - 35.015 mm
NO-GO Plug- Gauges - 35.041 mm
Compatible Inner Ring - JR 30x35x20.5
Compalible Thin Thrust Plate - CP 35 52
Compalible Thick Thrust Plate - CP 3 35 52

Description of Prefix :
RAX 700 - Needle combined bearing with thin outer ring, open

♦ ♦ Images are for representation purposes only
