RAX 718 NADELLA

Brand - NADELLA
Item Number - RAX 718 NADELLA
Category - Open Type Combined Bearing

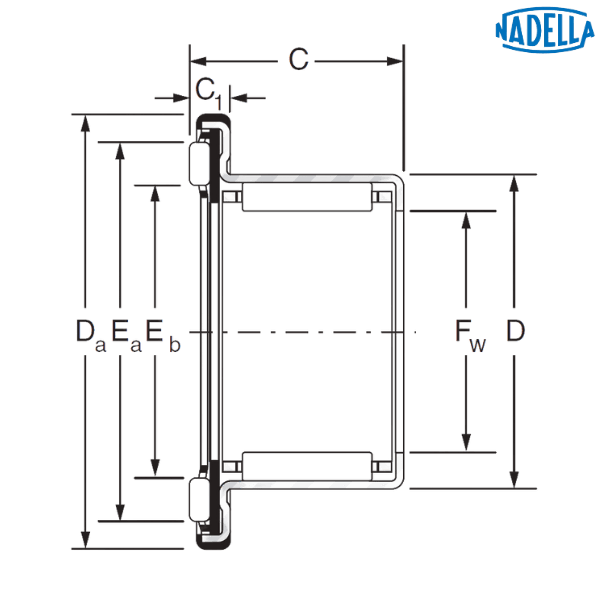

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 18 mm
Diameter of Inner Raceway (Fw) - 18 mm
Outer Diameter (D) - 24 mm
Width (C) - 18.2 mm
Dimension (Da) - 33.5 mm
Dimension (Eb) - 21 mm
Dimension (Ea) - 28.6 mm
Dimension (C1) - 4.2 mm
Dimension (L) - 17.2 mm
Radial Dynamic Load Rating (C) - 11.5 kN
Radial Static Load Rating (C0) - 17.7 kN
Axial Dynamic Load Rating (C) - 8 kN
Axial Static Load Rating (C0) - 23 kN
Radial Limit Load - 5.8 kN
Axial Limit Load - 16 kN
Speed Rating - 10000 rpm
Weight - 0.027 kg
Housing (∅) - 24 mm
GO Plug- Gauges - 18.009 mm
NO-GO Plug- Gauges - 18.035 mm
Compatible Inner Ring - JR 15x18x16.5
Compalible Thin Thrust Plate - CP 18 30
Compalible Thick Thrust Plate - CP 2 18 30

Description of Prefix :
RAX 700 - Needle combined bearing with thin outer ring, open

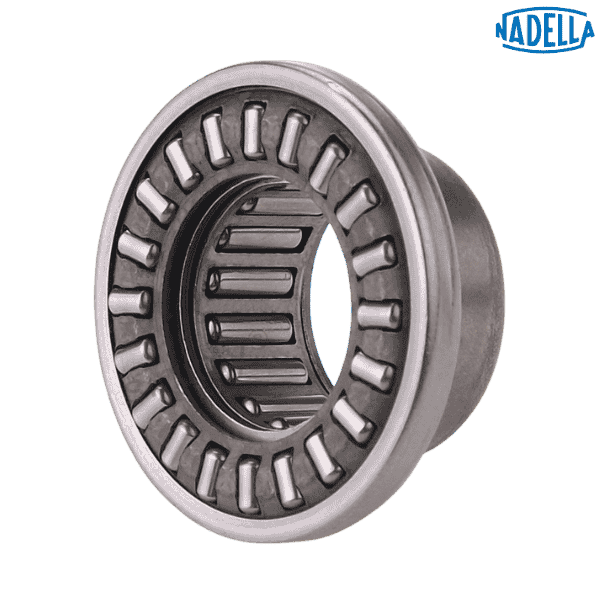

♦ ♦ Images are for representation purposes only
