RAX 425 NADELLA

Brand - NADELLA
Item Number - RAX 425 NADELLA
Category - Combined Bearing with Incorporate Thrust Plate

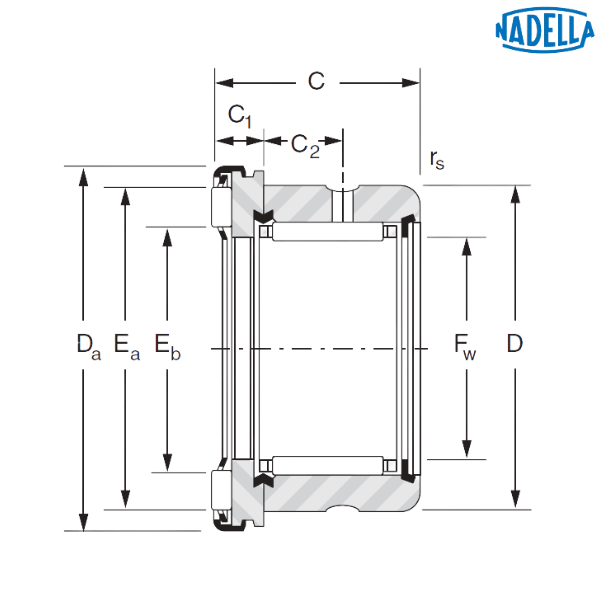

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 25 mm
Diameter of Inner Raceway (Fw) - 25 mm
Length (C) - 24 mm
Outer Diameter (D) - 37 mm
Outer Diameter (Da) - 42 mm
Dimension (Eb) - 27.7 mm
Dimension (Ea) - 37.4 mm
Dimension (C1) - 6 mm
Dimension (C2) - 9 mm
Minimum Chamfer Dimension (rs) - 0.85 mm
Radial Dynamic Load Rating (C) - 15.1 kN
Radial Static Load Rating (C0) - 26.2 kN
Axial Dynamic Load Rating (C) - 13.3 kN
Axial Static Load Rating (C0) - 49 kN
Speed Rating - 7500 rpm
Weight - 0.099 kg
Compatible Inner Ring - JR 20x25x20
Compalible Thin Thrust Plate - CP 25 42
Compalible Thick Thrust Plate - CP 3 25 42

Description of Prefix :

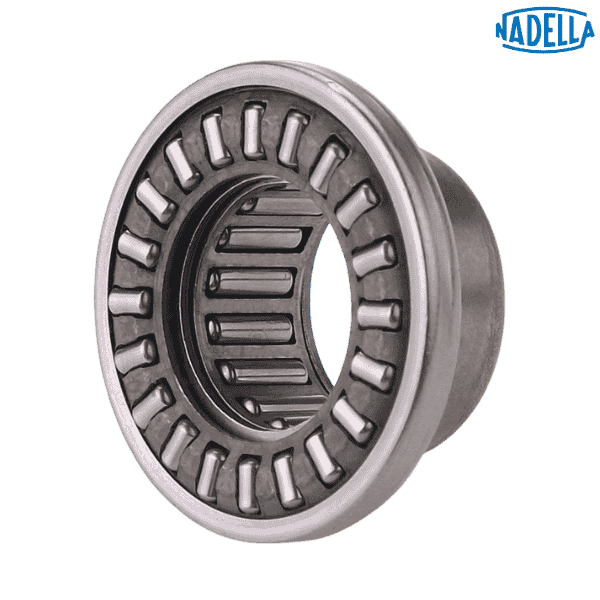

RAX 400 - Needle combined bearing with needle thrust cage

♦ ♦ Images are for representation purposes only
