RAX 415 NADELLA

Brand - NADELLA
Item Number - RAX 415 NADELLA
Category - Combined Bearing with Incorporate Thrust Plate

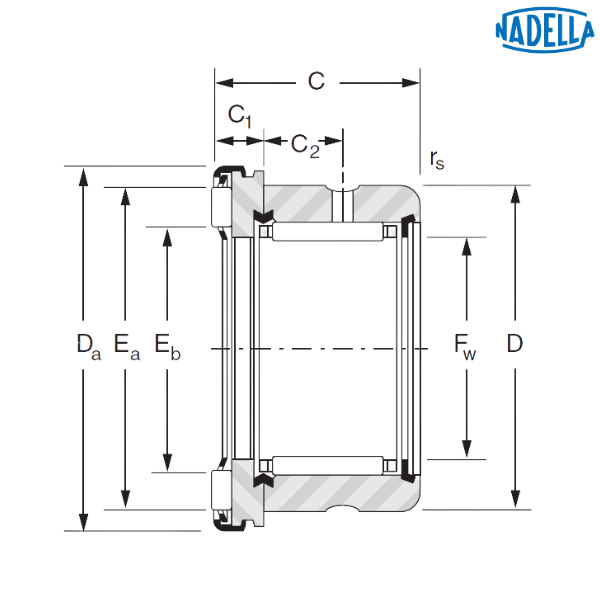

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 15 mm
Diameter of Inner Raceway (Fw) - 15 mm
Length (C) - 19 mm
Outer Diameter (D) - 24 mm
Outer Diameter (Da) - 28 mm
Dimension (Eb) - 17 mm
Dimension (Ea) - 24.6 mm
Dimension (C1) - 5 mm
Dimension (C2) - 6 mm
Minimum Chamfer Dimension (rs) - 0.35 mm
Radial Dynamic Load Rating (C) - 9.66 kN
Radial Static Load Rating (C0) - 12.6 kN
Axial Dynamic Load Rating (C) - 7.6 kN
Axial Static Load Rating (C0) - 20.8 kN
Speed Rating - 11500 rpm
Weight - 0.034 kg
Compatible Inner Ring - JR 12x15x16
Compalible Thin Thrust Plate - CP 15 28
Compalible Thick Thrust Plate - CP 2 15 28

Description of Prefix :
RAX 400 - Needle combined bearing with needle thrust cage
