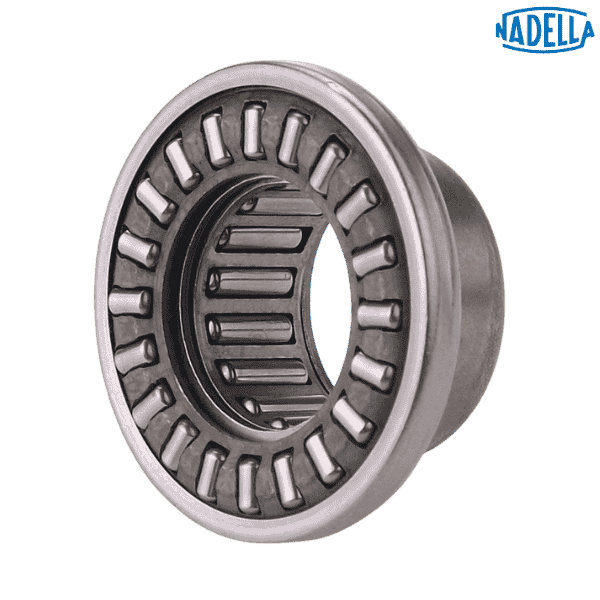

RAX 410 NADELLA

Brand - NADELLA
Item Number - RAX 410 NADELLA
Category - Combined Bearing with Incorporate Thrust Plate

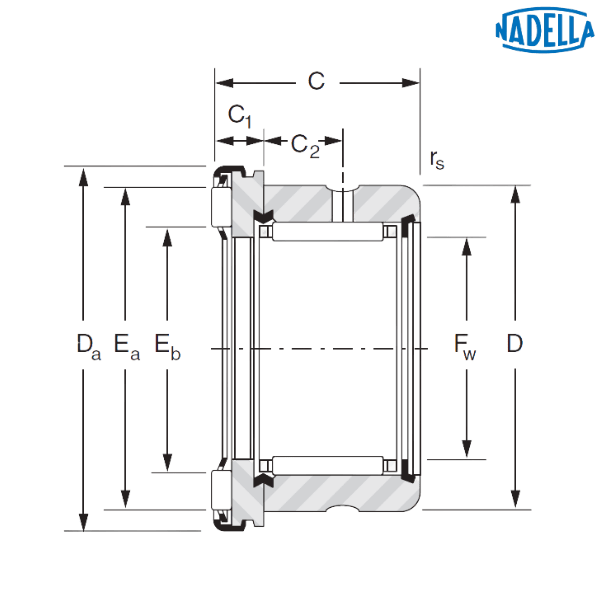

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 10 mm
Diameter of Inner Raceway (Fw) - 10 mm
Length (C) - 19 mm
Outer Diameter (D) - 19 mm
Outer Diameter (Da) - 22 mm
Dimension (Eb) - 12 mm
Dimension (Ea) - 18.6 mm
Dimension (C1) - 5 mm
Dimension (C2) - 6 mm
Minimum Chamfer Dimension (rs) - 0.35 mm
Radial Dynamic Load Rating (C) - 5.9 kN
Radial Static Load Rating (C0) - 7.16 kN
Axial Dynamic Load Rating (C) - 5 kN
Axial Static Load Rating (C0) - 10.9 kN
Speed Rating - 15500 rpm
Weight - 0.025 kg
Compatible Inner Ring - JR 7x10x16
Compalible Thin Thrust Plate - CP 10 22
Compalible Thick Thrust Plate - CP 2 10 22

Description of Prefix :
RAX 400 - Needle combined bearing with needle thrust cage

♦ ♦ Images are for representation purposes only
