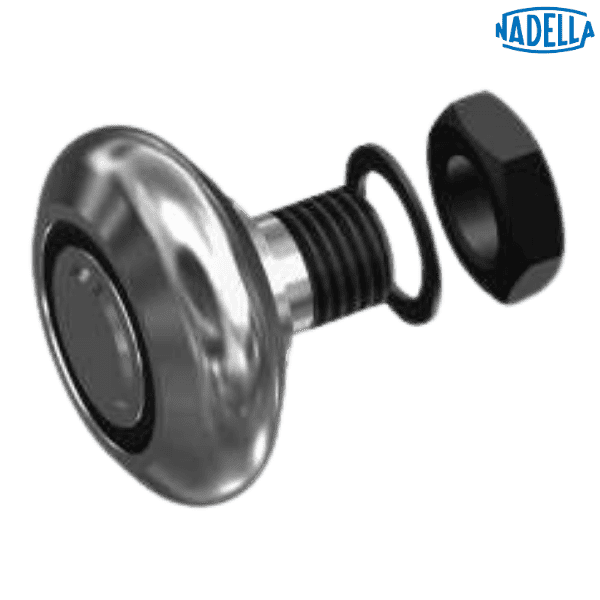

RAS 63 NADELLA

Brand - NADELLA
Item Number - RAS 63 NADELLA
Category - Guide Floating Rollers with Single Row Ball Bearing for LS Rail

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 50 mm
Dimension (R) - 7 mm
Dimension (d1) - 16 (H7) mm
Dimension (d) - M16 x 1.5
Minimum Dimension (m*) - 11.75 mm
Maximum Dimension (m*) - 15.75 mm
Minimum Dimension (S) - 5.5 mm
Dimension (P) - 9.2 mm
Dimension (L) - 40 mm
Dimension (A) - 17 mm
Dimension (B) - 22.5 mm
Dimension (l1) - 6.5 mm
Dimension (M) - 24 mm
Dimension (SW1) - 6 mm
Dimension (SW2) - 24 mm
Dimension (k) - 1 mm
Guide - LS 63
Dynamic Load (Cw**) - 14200 N
Radial Limit Load (Fr) - 6500 N
Torque Wrench Settings*** - 64 Nm
Weight - 0.255 kg

Description of Prefix:
RAS - Floating Guide Rollers with Balls for LS Rails of C-Line System

Other salient points to be noted:
* Maximum displacement of dimension m to ensure proper guide roller function and safety
** Cw = load for lifetime of 100 km
*** The tightening torques apply to non-lubricated threads; for lubricated threads the values have to be multiplied by 0.8

• Guide rollers will be supplied with washers and nuts (DIN 439B)
• Contact angle α for the load calculation: 55°
• Standard seals type RS

♦ ♦ Images are for representation purposes only
