RALR 35.10 NADELLA

Brand - NADELLA
Item Number - RALR 35.10* NADELLA
Category - Floating Guide Rollers with “Gothic Arch” Profile, with a Double Row of Balls with Oblique Contact (Eccentric)

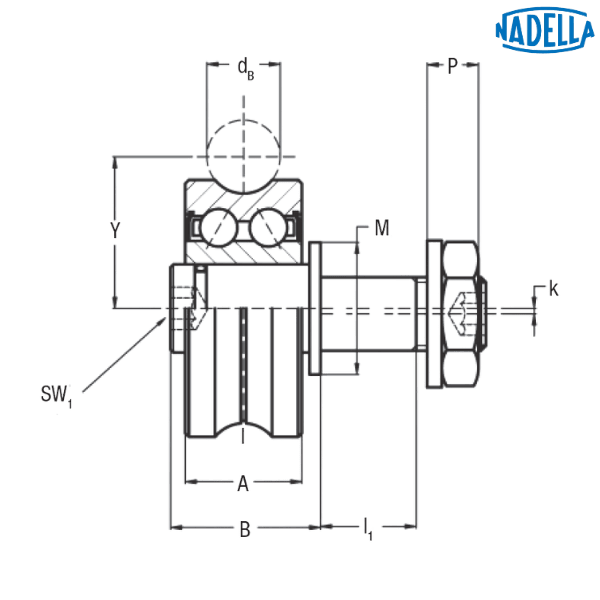

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 35 mm
Dimension (dB) - 10 mm
Dimension (d1) - 10 (H7) mm
Dimension (d) - M10 x 1.25
Dimension (Y) - 20.65 mm
Minimum Dimension (m)** - 10.5 mm
Maximum Dimension (m)** - 12.5 mm
Minimum Dimension (S) - 14 mm
Dimension (P) - 7 mm
Dimension (L) - 43 mm
Dimension (A) - 15.9 mm
Dimension (B) - 20.5 mm
Dimension (l1) - 13 mm
Dimension (M) - 18 mm
Dimension (SW1) - 5 mm
Dimension (SW2) - 17 mm
Dimension (k) - 0.75 mm
Suggested Combinations - LM 65
Dynamic Load (Cw)*** - 7800 N
Radial Limit Load (Fr) - 2100 N
Torque Wrench Settings**** - 20 Nm
Weight - 0.13 kg

Other salient points to be noted:
* Available in stainless steel (suffix NX), seals in nitrile rubber type RS
** To ensure a safe and proper functioning the dimension m must not be higher than m maximum
*** Cw basic load for 100 km
**** The torque wrench settings are given for non-lubricated threads; for lubricated threads, multiply figure by 0.8

• The guide rollers are complete with self-locking washers and hexagonal nut for fitting
• Standard shields ZZ type

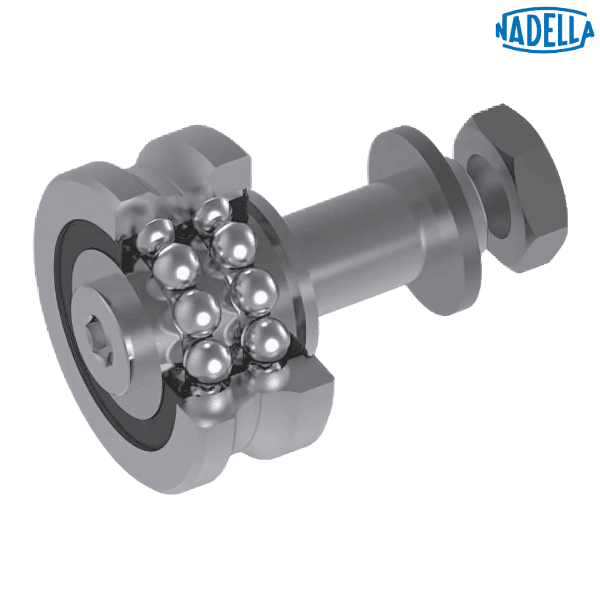

♦ ♦ Images are for representation purposes only
