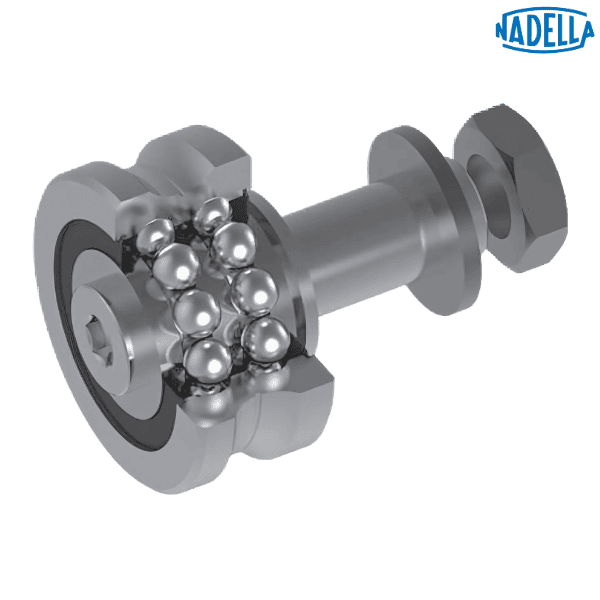

RAL 17.06 NADELLA

Brand - NADELLA
Item Number - RAL 17.06* NADELLA
Category - Floating Guide Rollers with “Gothic Arch” Profile, with a Double Row of Balls with Oblique Contact (Concentric)

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 17 mm
Dimension (dB) - 6 mm
Dimension (d1) - 5 (H7) mm
Dimension (d) - M5 x 0.8
Dimension (Y) - 10.5 mm
Minimum Dimension (m)** - 6 mm
Maximum Dimension (m)** - 7.6 mm
Minimum Dimension (S) - 6 mm
Dimension (P) - 3.7 mm
Dimension (L) - 20.5 mm
Dimension (A) - 7 mm
Dimension (B) - 10.5 mm
Dimension (l1) - 5.2 mm
Dimension (M) - 9 mm
Dimension (SW1) - 2.5 mm
Dimension (SW2) - 8 mm
Dimension (k) - 0.25 mm
Suggested Combinations - LM 30
Dynamic Load (Cw)*** - 1400 N
Radial Limit Load (Fr) - 450 N
Torque Wrench Settings**** - 3 Nm
Weight - 0.02 kg

Description of Prefix:
RAL - Floating guide rollers with “gothic arch” profile, with a double row of balls with oblique contact, for LM rails of U-Line system

Other salient points to be noted:
* Available in stainless steel (suffix NX), seals in nitrile rubber type RS
** To ensure a safe and proper functioning the dimension m must not be higher than m maximum
*** Cw basic load for 100 km
**** The torque wrench settings are given for non-lubricated threads; for lubricated threads, multiply figure by 0.8

• The guide rollers are complete with self-locking washers and hexagonal nut for fitting
• Standard shields ZZ type

♦ ♦ Images are for representation purposes only
