RA3992

RA3992

Part Number: RA3992 FAG

Compatible Bearing: 23992-

Compatible Withdrawal sleeve: AH3992

Housing Weight: 520 kg

Dimensions:

Bore Diameter (d): 460 mm
Housing Bore Diameter (d1): 440 mm
Seal Seat Diameter (d2): 462 mm
End Cover Clearance Dia. (d3 min.): 476 mm
Bearing Seat Diameter (d4): 458 mm

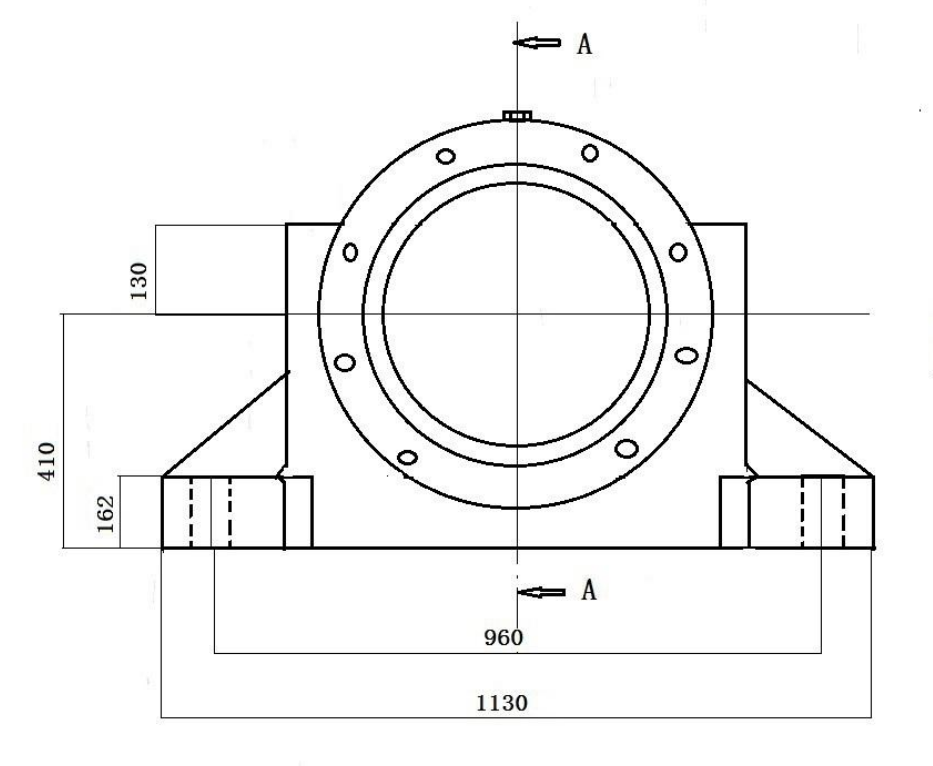

Overall Length (a): 1130 mm
Center to End Face (g1): 315 mm
Overall Height (h1): 765 mm
Housing Width (b): 230 mm
Outer Diameter (D): 620 mm

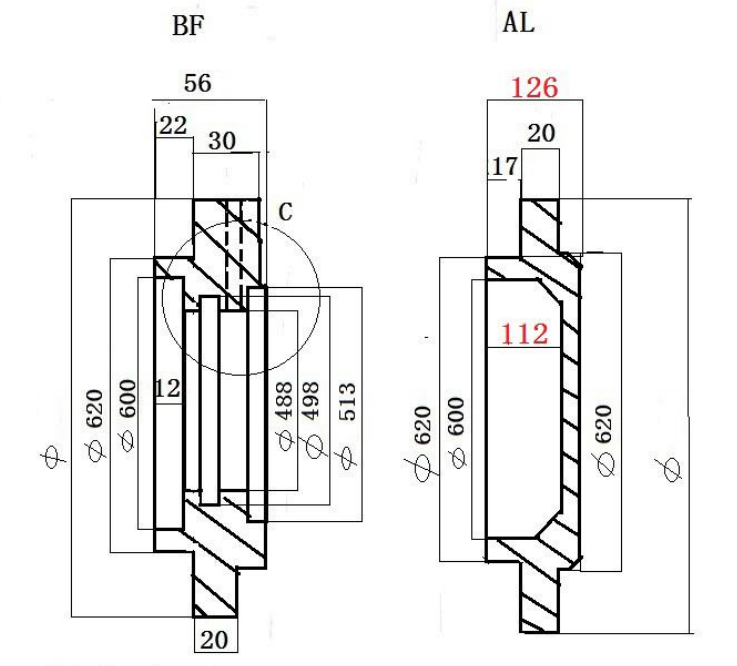

End Cover Width (C): 162 mm
Seal Groove Diameter (g2): 270 mm
Bearing Seat Depth (g3): 135 mm
Seal Clearance Min. (g4 min.): 165 mm
Base Height (h): 410 mm
Foot Thickness (k): 7 mm
Bolt Hole Spacing (m): 960 mm
Base Width (n): 120 mm

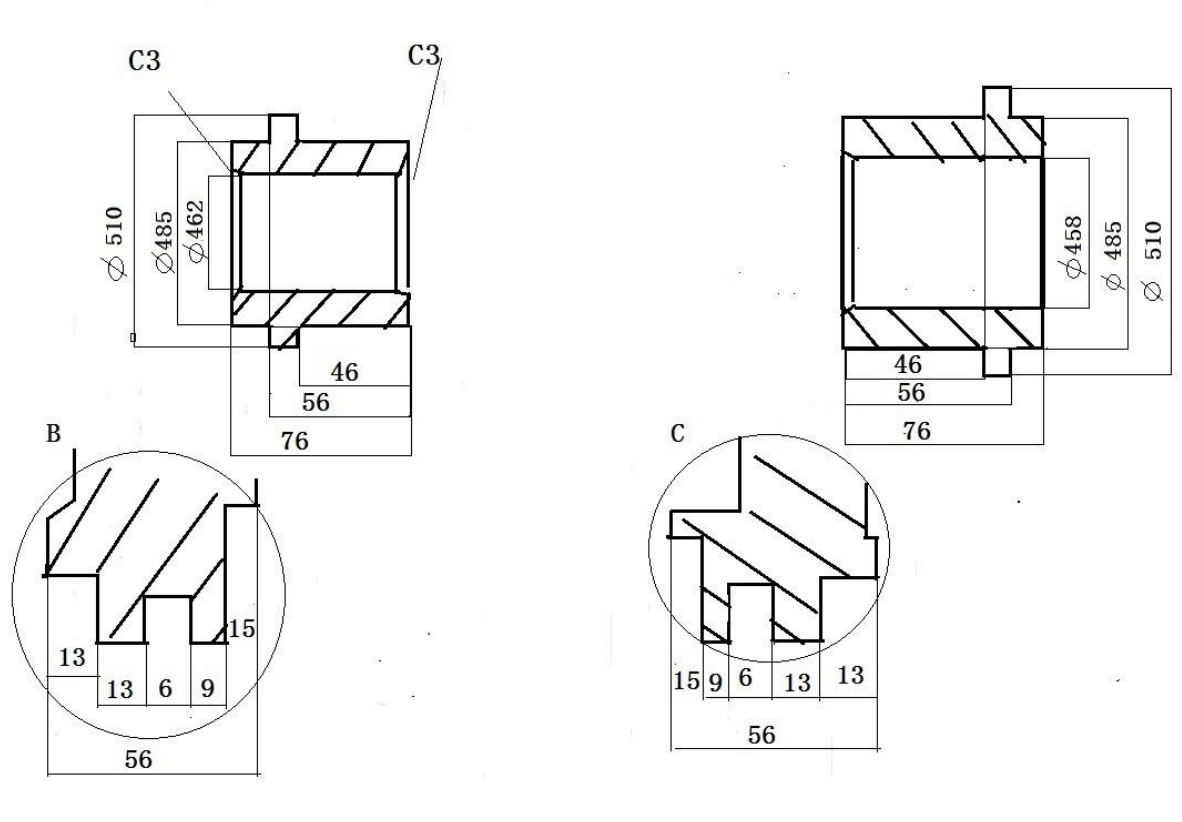

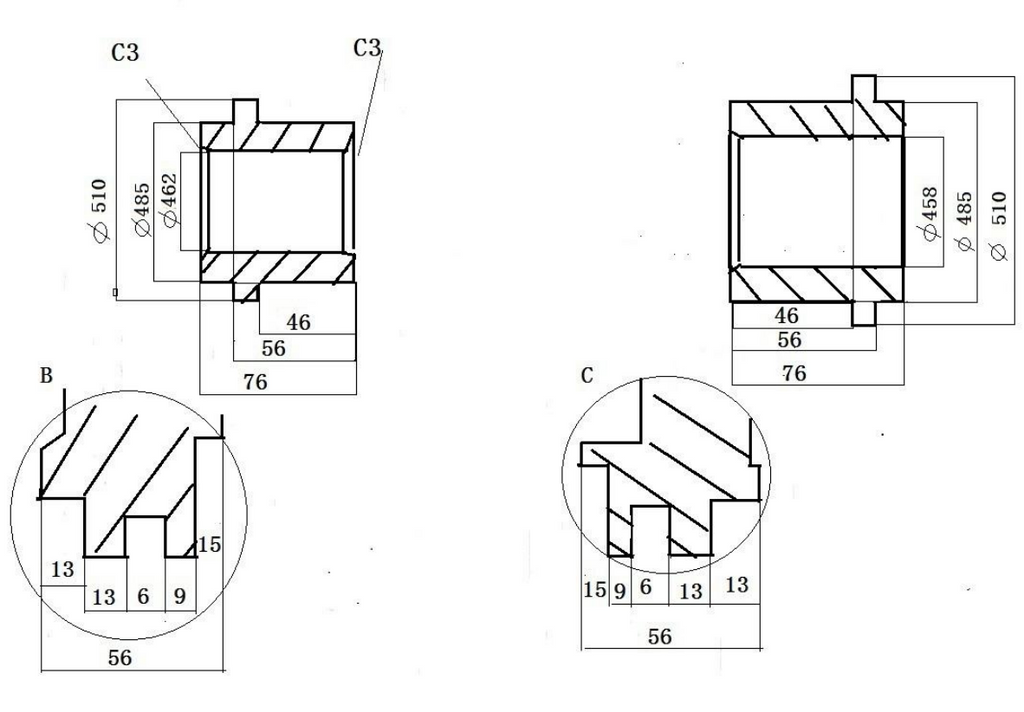

Seal Groove Width (u): 56 mm
Bolt Size (s): M48

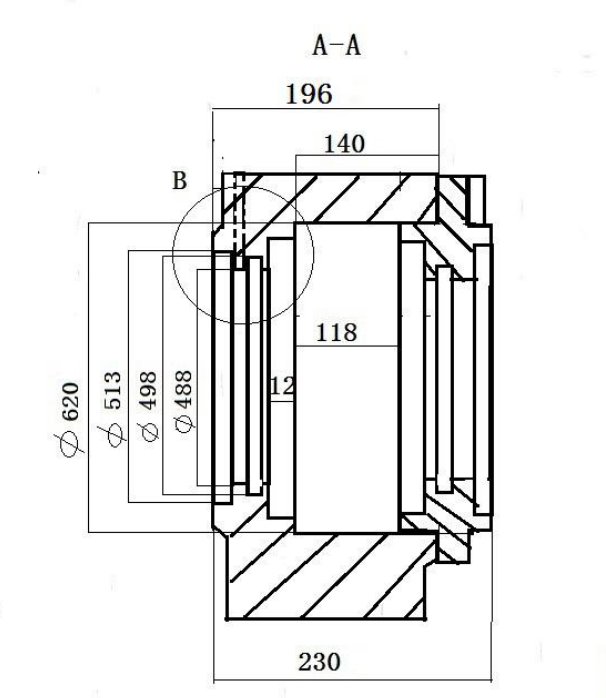

Seat Depth After End Cover Assembly: 118 mm

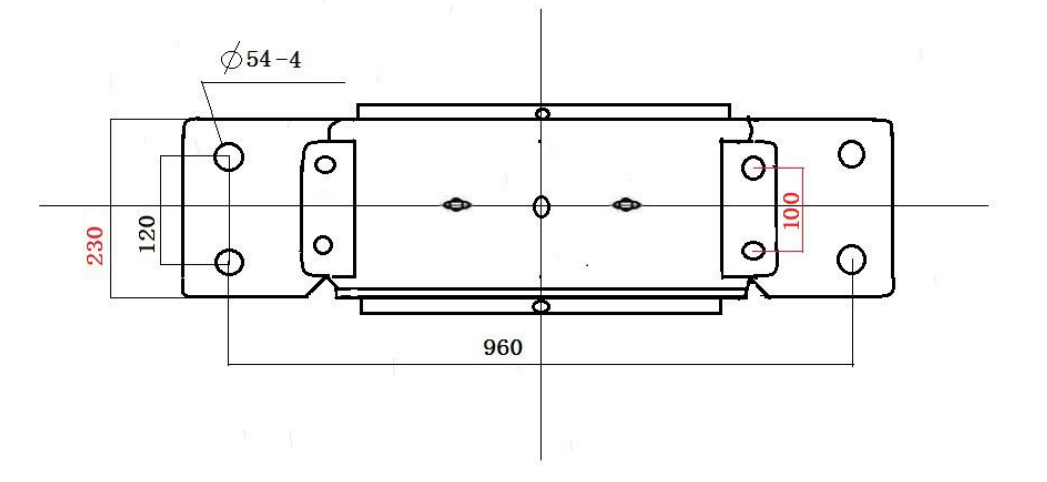

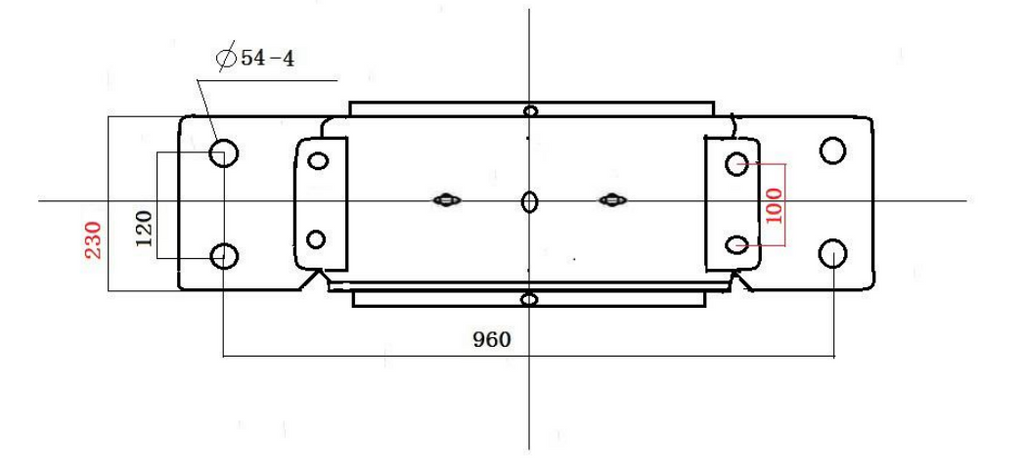

Mounting Bolt Clearance Holes: Ø 54 mm × 4

The RA3992 Split Plummer Block Housing-locating
configuration is an ultra heavy-duty, split-design housing built for the
most demanding industrial environments. Designed to house large
spherical roller bearings (compatible with bearing 23992- and
withdrawal sleeve AH3992), it features a highly durable cast
construction that ensures optimal load distribution and protection
against severe operating conditions.
