RA3960BF FAG

RA3960BF FAG

Part Number: RA3960BF FAG

Compatible Bearing: 23960-

Compatible Withdrawal sleeve: AH3960

Housing Weight: 145 kg

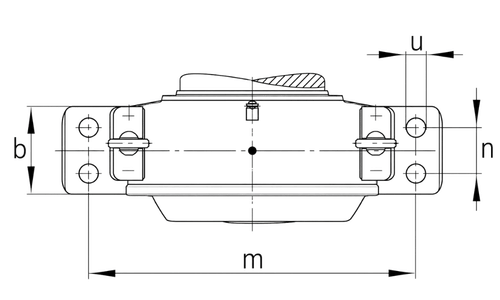

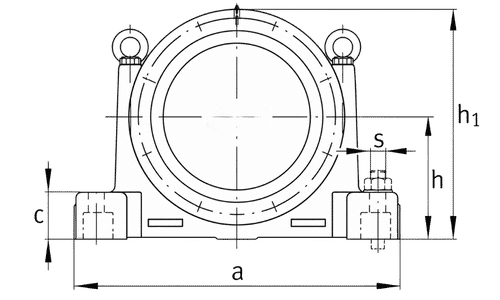

Dimensions:

d: 300 mm

d1: 280 mm

d2: 302 mm

d3 min.: 312 mm

d4: 298 mm

a: 730 mm

g1: 240 mm

h1: 525 mm

b: 165 mm

D: 420 mm

C: 115 mm

g2: 216 mm

g3: 108 mm

g4 min.: 120 mm

h: 280 mm

k: 5 mm

m: 635 mm

n: 80 mm

u: 35 mm

s: M30

Upgrade your heavy-duty machinery with the Schaeffler RA3960 Split Plummer Block Housing-locating (BF) configuration, engineered for maximum operational reliability and stability. Designed specifically to accommodate spherical roller bearings (compatible with bearing 23960- and withdrawal sleeve AH3960), this housing provides robust protection and precise alignment for high-capacity industrial applications.
