Description
Brand - RBC HEIM
Item Number - R71610 RBC HEIM
Category - Plain Ball Bearing

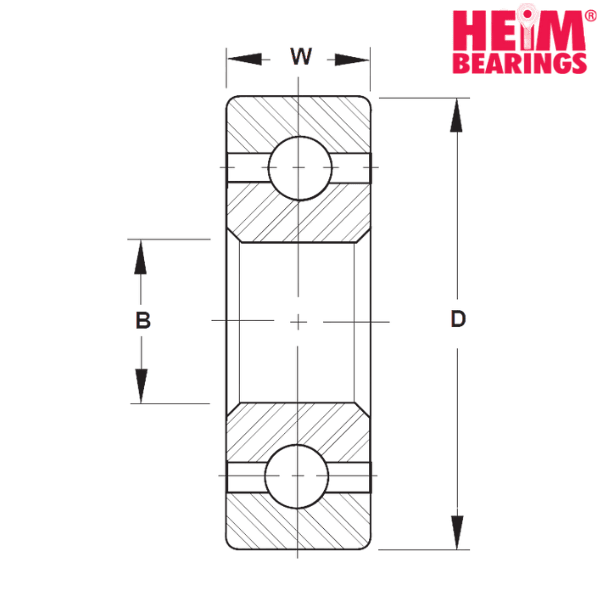

Principal Dimensions & Load Ratings (Imperial) :
Bore Nominal Size - 0.4375 (+.004 to +.001) inch
Outside Diameter (D) - 1 (+.002 to - .002) inch
Width (W) - 0.3125 (+.005 to - .005) inch
Number of Balls - 14 pcs.
Ball Diameter - 0.15625 inch
Load Capacity as per 50 Revolutions Per Minute - 360 lbf
Load Capacity as per 100 Revolutions Per Minute - 280 lbf
Load Capacity as per 300 Revolutions Per Minute - 145 lbf
Load Capacity as per 600 Revolutions Per Minute - 110 lbf
Load Capacity as per 1000 Revolutions Per Minute - 65 lbf
Other salient points to be noted :
• Outer Ring = Carbon steel, case hardened.
• Inner Ring = Carbon steel, case hardened.
• Balls = Carbon steel, case hardened.
• Seals = Synthetic rubber, if required.
• Shields = Steel, if required.
• Add letter “P” to suffix to indicate one seal.
• Example: RF102214P
• Add letters “PP” to suffix to indicate two seals.
• Example: RF102214PP
• Add letters “MP” to suffix to indicate mechanical shield.
• Example: RF102214MP

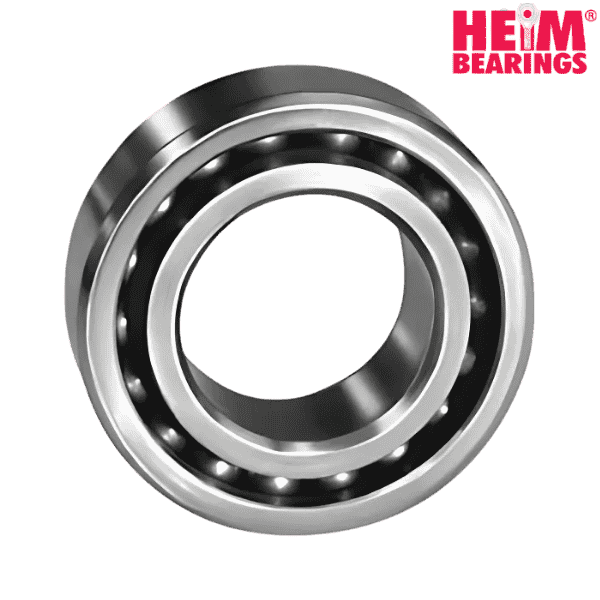

♦ ♦ Images are for representation purposes only
