Description
Brand - ZEN
Item Number - R24-2RS ZEN
Category - Deep Groove Ball bearing

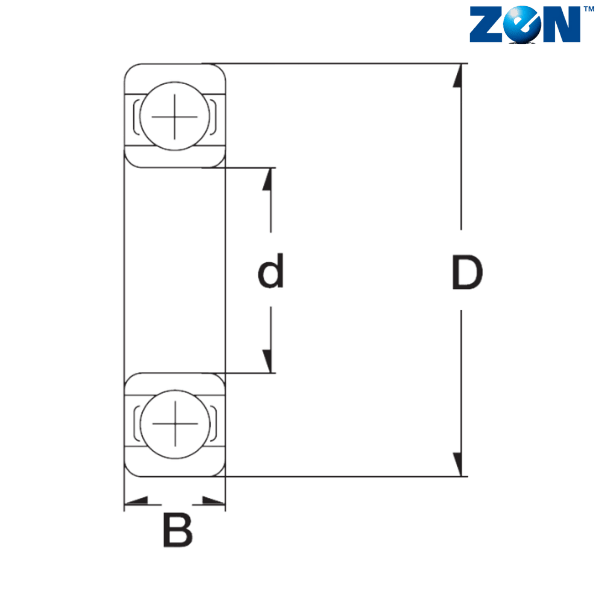

Inner Diameter (d) mm - 38.100
Inner Diameter (d) inch - 1.500
Outer Diameter (D) mm - 66.675
Outer Diameter (D) inch - 2.625
Width (B) mm - 14.288
Width (B) inch - 0.5625
Dynamic Load Rating (N) - 19600
Static Load Rating (N) - 10800
Limiting Speed (Grease) - 10
Limiting Speed (Oil) - 11.5
Weight (kg) - 0.14
Notes :
R - Inch
2RS - Rubber Seals

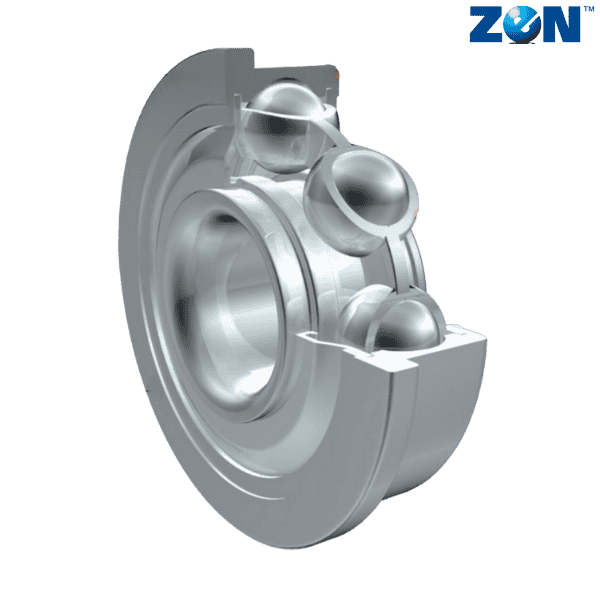

** Images are for representation purposes only
