Description
Brand - ZEN
Item Number - R22 ZEN

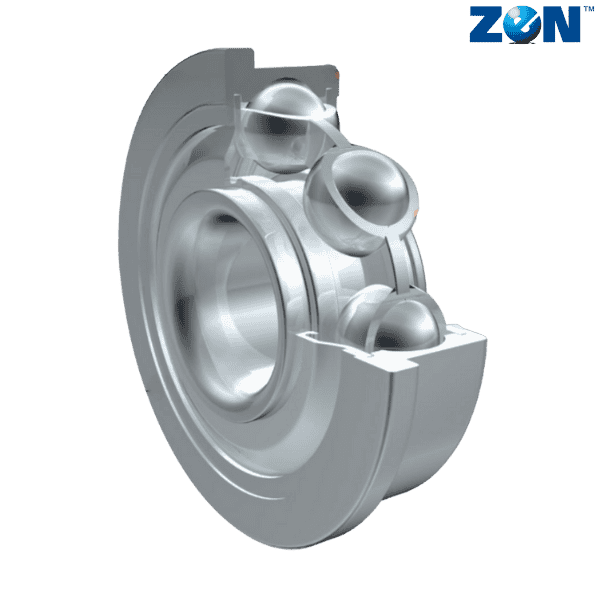

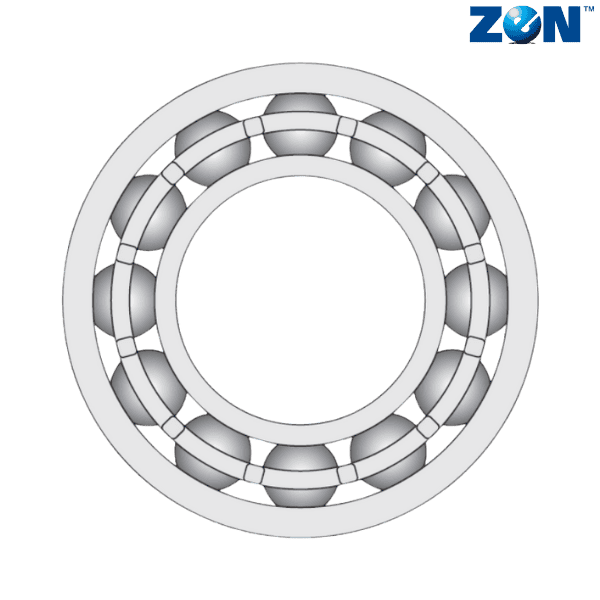

Category - Deep Groove Ball bearing

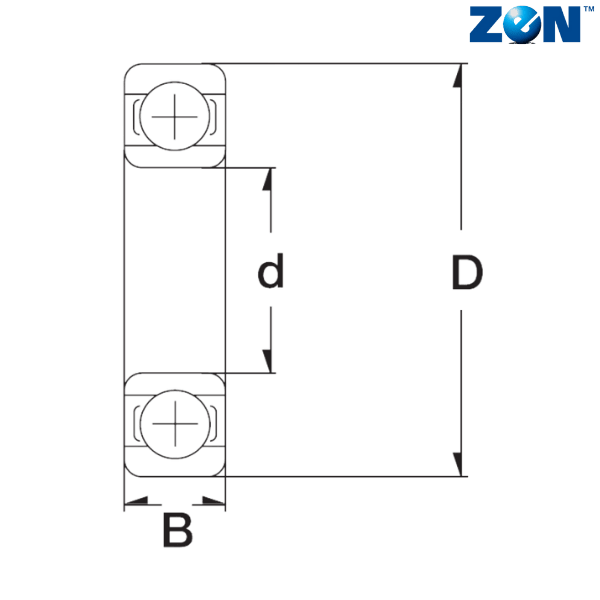

Inner Diameter (d) mm - 34.925
Inner Diameter (d) inch - 1.375
Outer Diameter (D) mm - 63.500
Outer Diameter (D) inch - 2.500
Width (B) mm - 11.113
Width (B) inch - 0.4375
Dynamic Load Rating (N) - 14400
Static Load Rating (N) - 9360
Limiting Speed (Grease) - 11.1
Weight (kg) - 0.134
Notes :
R - Inch
** Images are for representation purposes only
