Description
Brand - TIMKEN
Item Number - R-2927-C TIMKEN
Category - Tapered Roller Thrust Bearing (TTHDFL Type)
Cage Type - Pin

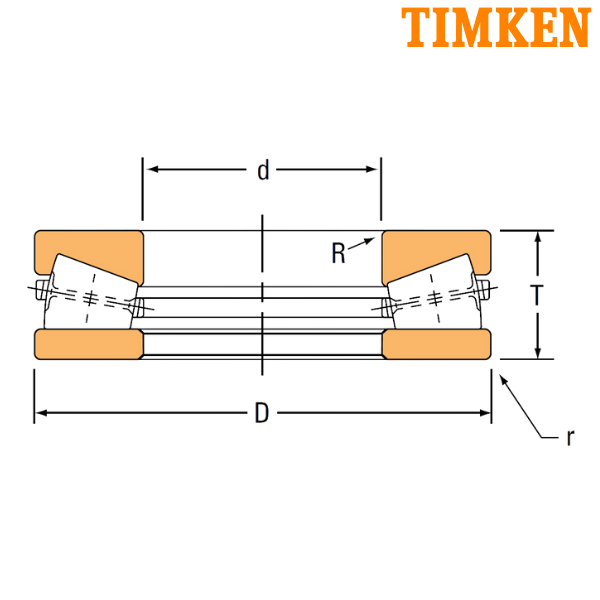

Bore Diameter (d) mm - 254.000
Bore Diameter (d) inch - 10.0000
Outer Diameter (D) mm - 508.000
Outer Diameter (D) inch - 20.0000
Width (T) mm - 107.950
Width (T) inch - 4.2500
Maximum Shaft Fillet Radius (R) mm - 4.8
Maximum Shaft Fillet Radius (R) inch - 0.19
Maximum Housing Fillet Radius (r) mm - 4.8
Maximum Housing Fillet Radius (r) inch - 0.19
Static Load Rating (C0) N - 12100000
Static Load Rating (C0) lbf - 2720000
Dynamic Load Rating (Ca90) N - 1440000
Dynamic Load Rating (Ca90) lbf - 324000
Weight (kg) - 123.40
Weight (lbs) - 272.00

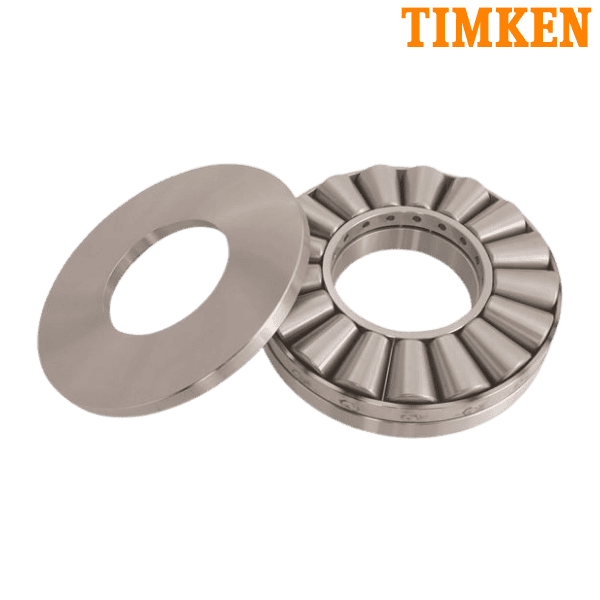

TTHDFL - Heavy Duty and Flat Race Tapered Roller Thrust Bearing
** Images are for representation purposes only
