Description
Brand - FAG
Item Number - QJ338-N2-MPA
Category - Four Point Contact Bearings
Weight (Kg) - 52.1
Inner Diameter (d) mm - 190
Outer Diameter (D) mm - 400
Inner Width (B) mm - 78
Minimum Chamfer Dimension (r) mm - 5
Shoulder Diameter Outer Ring (D1) mm - 327
Shoulder Diameter Inner Ring (d1) mm - 262.5
Distance Between The Apexes Of The Pressure Cones (a) mm - 207
High Retaining Slot (an) mm - 12.7
Width Retaining Slot (bn) mm - 10.5
Radius Retaining Slot (rn) mm - 2

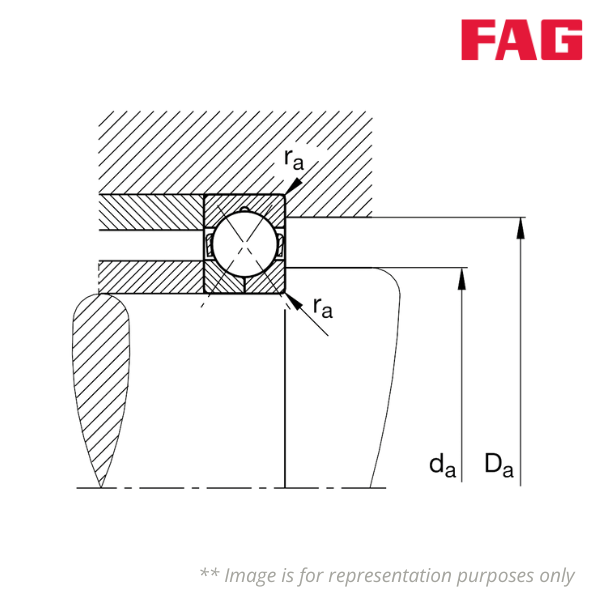

Minimum Diameter Of Shaft Shoulder (da) mm - 210
Maximum Diameter Of Housing Shoulder (Da) mm - 380
Maximum Fillet Radius (ra) mm - 4
Basic Dynamic Load Rating (Cr.) kN - 735
Basic Static Load Rating (C0r) kN - 1250
Fatigue Limit Load Current (Cur) kN - 37
Limiting Speed (nG) rpm - 2800
