QJ322-N2-MPA FAG

Brand - FAG
Item Number - QJ322-N2-MPA FAG
Category - Four Point Contact Ball Bearing Single Row
Bore Diameter (d) mm - 110
Outside Diameter (D) mm - 240
Width (B) mm - 50
Basic Dynamic Load Rating, Radial (Cr) N - 345000
Basic Static Load Rating, Radial (C0r) N - 415000
Fatigue Load Limit, Radial (Cur) N - 18000
Limiting Speed (nG) min–1 - 4950
Reference Speed (nϑr) min–1 - 2700
Weight (m) kg - 12.2
Minimum Chamfer Dimension (r min) mm - 3
Shoulder Diameter Outer Ring (D1) mm - 195.5
Shoulder Diameter Inner Ring (d1) mm - 156.5
Distance Between the Apexes of the Pressure Cones (a) mm - 123
Hight Retaining Slot (an) mm - 11.7
Width Retaining Slot (bn) mm - 10.5
Radius Retaining Slot (rn) mm - 2

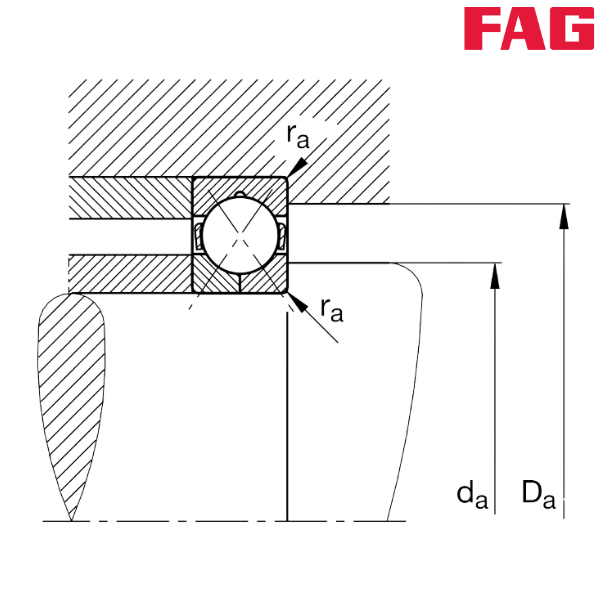

Minimum Diameter Shaft Shoulder (da) mm - 124
Maximum Diameter of Housing Shoulder (Da) mm - 226
Maximum Fillet Radius (ra) mm - 2.5

Descriptions of Suffixes :
--------------------------------------------------------------------------
MPA - Solid Brass Cage, Guided on Outer Ring
N2 - Two Retaining Slots in Outer Ring

** Images are for representation purposes only
