QJ315-XL-N2-MPA FAG

Brand - FAG
Item Number - QJ315-XL-N2-MPA FAG
Category - Four Point Contact Ball Bearing Single Row
Bore Diameter (d) mm - 75
Outside Diameter (D) mm - 160
Width (B) mm - 37
Basic Dynamic Load Rating, Radial (Cr) N - 229000
Basic Static Load Rating, Radial (C0r) N - 204000
Fatigue Load Limit, Radial (Cur) N - 14400
Limiting Speed (nG) min–1 - 7600
Reference Speed (nϑr) min–1 - 3900
Weight (m) kg - 3.95
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 131
Shoulder Diameter Inner Ring (d1) mm - 104.4
Distance Between the Apexes of the Pressure Cones (a) mm - 82
Hight Retaining Slot (an) mm - 10.1
Width Retaining Slot (bn) mm - 8.5
Radius Retaining Slot (rn) mm - 2

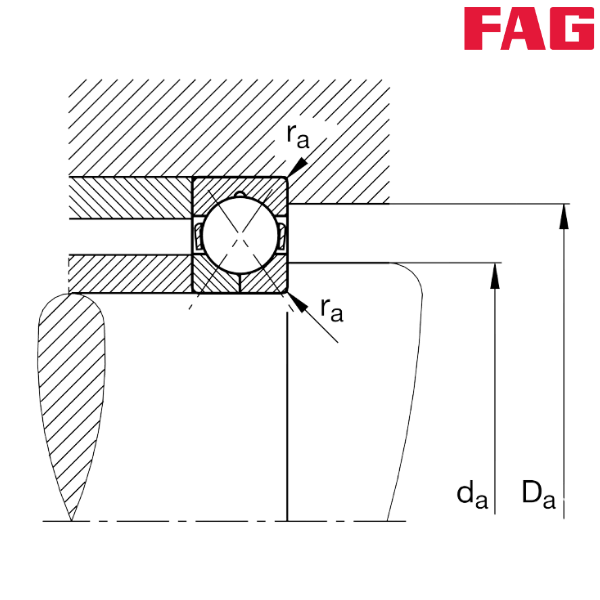

Minimum Diameter Shaft Shoulder (da) mm - 87
Maximum Diameter of Housing Shoulder (Da) mm - 148
Maximum Fillet Radius (ra) mm - 2.1

Descriptions of Suffixes :
--------------------------------------------------------------------------
MPA - Solid Brass Cage, Guided on Outer Ring
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type
N2 - Two Retaining Slots in Outer Ring

** Images are for representation purposes only
