QJ314-XL-MPA FAG

Brand - FAG
Item Number - QJ314-XL-MPA FAG
Category - Four Point Contact Ball Bearing Single Row

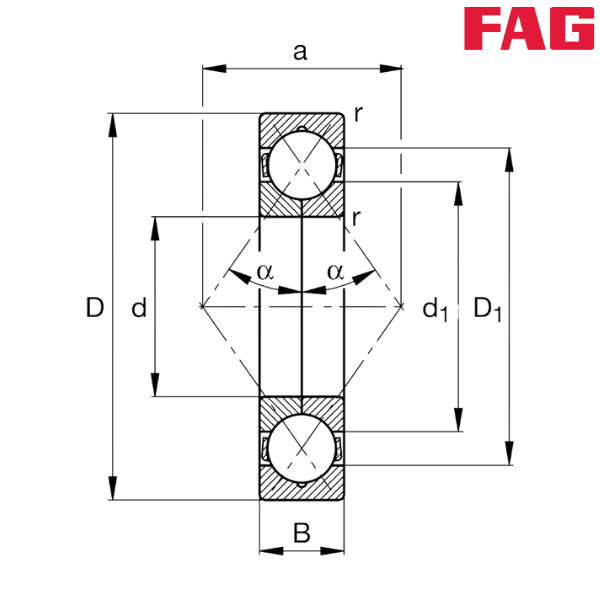

Bore Diameter (d) mm - 70
Outside Diameter (D) mm - 150
Width (B) mm - 35
Basic Dynamic Load Rating, Radial (Cr) N - 198000
Basic Static Load Rating, Radial (C0r) N - 165000
Fatigue Load Limit, Radial (Cur) N - 11800
Limiting Speed (nG) min–1 - 8100
Reference Speed (nϑr) min–1 - 4200
Weight (m) kg - 3.29
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 123.6
Shoulder Diameter Inner Ring (d1) mm - 97.7
Distance Between the Apexes of the Pressure Cones (a) mm - 77

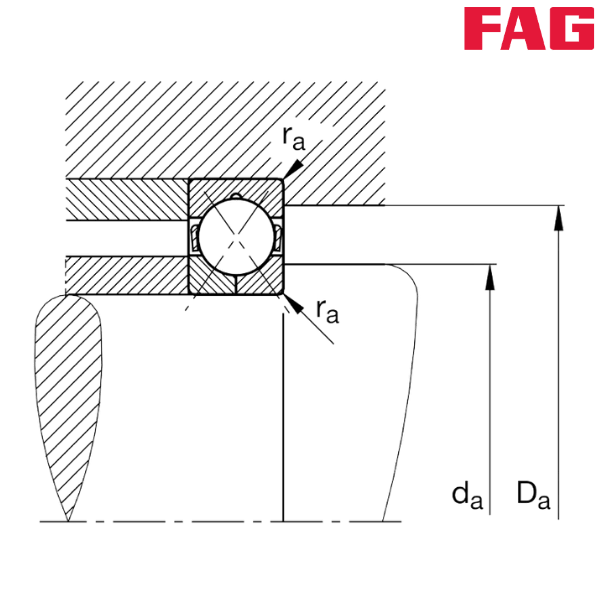

Minimum Diameter Shaft Shoulder (da) mm - 82
Maximum Diameter of Housing Shoulder (Da) mm - 138
Maximum Fillet Radius (ra) mm - 2.1

Descriptions of Suffixes :
--------------------------------------------------------------------------
MPA - Solid Brass Cage, Guided on Outer Ring
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type

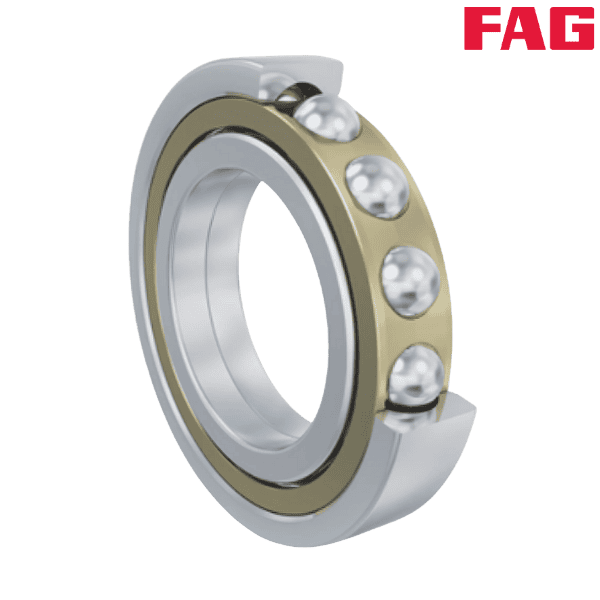

** Images are for representation purposes only
