QJ309-XL-TVP FAG

Brand - FAG
Item Number - QJ309-XL-TVP FAG
Category - Four Point Contact Ball Bearing Single Row

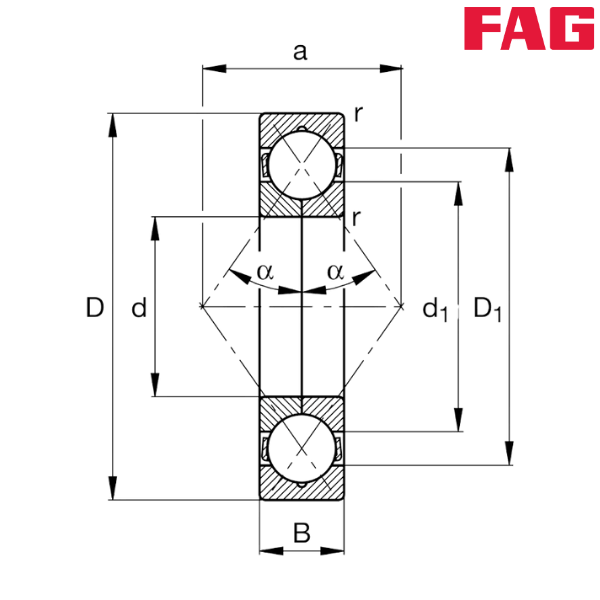

Bore Diameter (d) mm - 45
Outside Diameter (D) mm - 100
Width (B) mm - 25
Basic Dynamic Load Rating, Radial (Cr) N - 107000
Basic Static Load Rating, Radial (C0r) N - 83000
Fatigue Load Limit, Radial (Cur) N - 6200
Limiting Speed (nG) min–1 - 8300
Reference Speed (nϑr) min–1 - 5700
Weight (m) kg - 0.934
Minimum Chamfer Dimension (r min) mm - 1.5
Shoulder Diameter Outer Ring (D1) mm - 81.7
Shoulder Diameter Inner Ring (d1) mm - 63.4
Distance Between the Apexes of the Pressure Cones (a) mm - 51

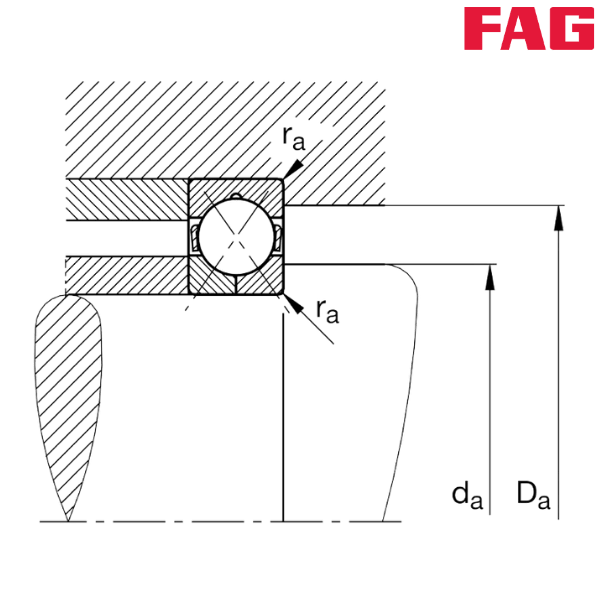

Minimum Diameter Shaft Shoulder (da) mm - 54
Maximum Diameter of Housing Shoulder (Da) mm - 91
Maximum Fillet Radius (ra) mm - 1.5

Descriptions of Suffixes :
--------------------------------------------------------------------------
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type
TVP - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66

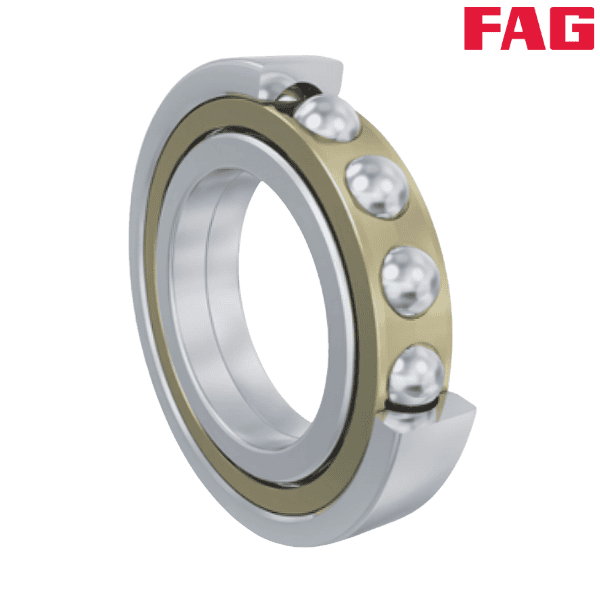

** Images are for representation purposes only
