Description
Brand - FAG
Item Number - QJ238-N2-MPA
Category - Four Point Contact Bearings
Weight (Kg) - 23.8
Inner Diameter (d) mm - 190
Outer Diameter (D) mm - 340
Inner Width (B) mm - 55
Minimum Chamfer Dimension (r) mm - 4
Shoulder Diameter Outer Ring (D1) mm - 286.3
Shoulder Diameter Inner Ring (d1) mm - 245.8
Distance Between The Apexes Of The Pressure Cones (a) mm - 186
High Retaining Slot (an) mm - 12.7
Width Retaining Slot (bn) mm - 10.5
Radius Retaining Slot (rn) mm - 2

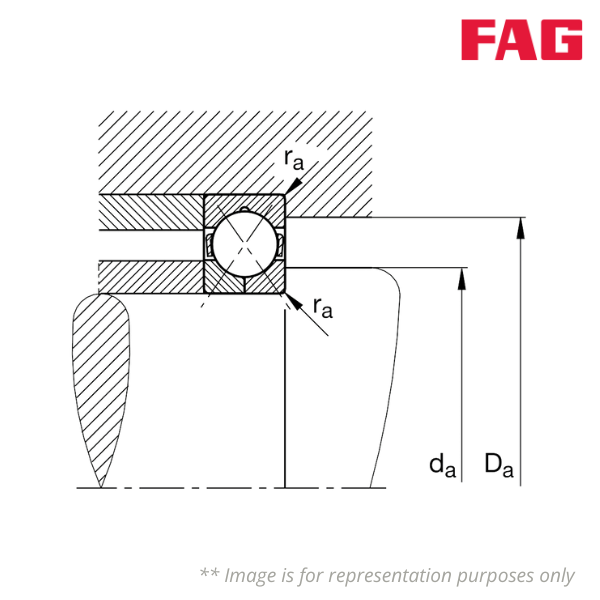

Minimum Diameter Of Shaft Shoulder (da) mm - 207
Maximum Diameter Of Housing Shoulder (Da) mm - 323
Maximum Fillet Radius (ra) mm - 3
Basic Dynamic Load Rating (Cr.) kN - 455
Basic Static Load Rating (C0r) kN - 735
Fatigue Limit Load Current (Cur) kN - 24.4
Limiting Speed (nG) rpm - 3200
