QJ220-N2-MPA FAG

Brand - FAG
Item Number - QJ220-N2-MPA FAG
Category - Four Point Contact Ball Bearing Single Row
Bore Diameter (d) mm - 100
Outside Diameter (D) mm - 180
Width (B) mm - 34
Basic Dynamic Load Rating, Radial (Cr) N - 224000
Basic Static Load Rating, Radial (C0r) N - 241000
Fatigue Load Limit, Radial (Cur) N - 11500
Limiting Speed (nG) min–1 - 6600
Reference Speed (nϑr) min–1 - 3550
Weight (m) kg - 4.02
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 153.6
Shoulder Diameter Inner Ring (d1) mm - 127.7
Distance Between the Apexes of the Pressure Cones (a) mm - 98
Hight Retaining Slot (an) mm - 10.1
Width Retaining Slot (bn) mm - 8.5
Radius Retaining Slot (rn) mm - 2

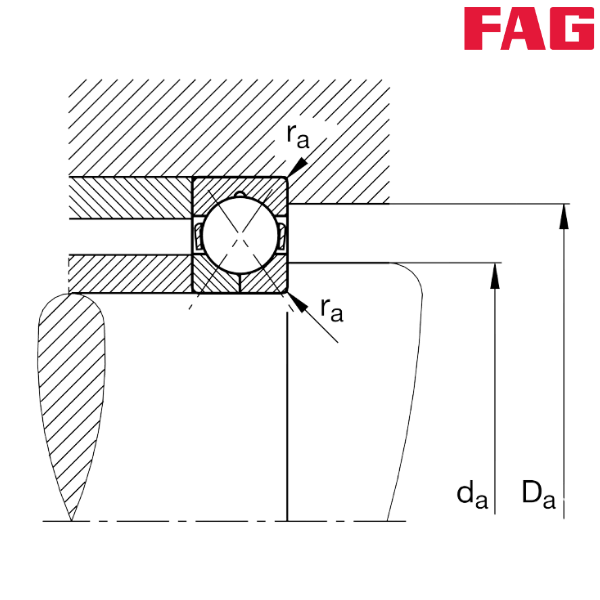

Minimum Diameter Shaft Shoulder (da) mm - 112
Maximum Diameter of Housing Shoulder (Da) mm - 168
Maximum Fillet Radius (ra) mm - 2.1

Descriptions of Suffixes :
--------------------------------------------------------------------------
MPA - Solid Brass Cage, Guided on Outer Ring
N2 - Two Retaining Slots in Outer Ring

** Images are for representation purposes only
