QJ218-XL-N2-TVP FAG

Brand - FAG
Item Number - QJ218-XL-N2-TVP FAG
Category - Four Point Contact Ball Bearing Single Row
Bore Diameter (d) mm - 90
Outside Diameter (D) mm - 160
Width (B) mm - 30
Basic Dynamic Load Rating, Radial (Cr) N - 189000
Basic Static Load Rating, Radial (C0r) N - 198000
Fatigue Load Limit, Radial (Cur) N - 12900
Limiting Speed (nG) min–1 - 4950
Reference Speed (nϑr) min–1 - 3750
Weight (m) kg - 2.35
Minimum Chamfer Dimension (r min) mm - 2
Shoulder Diameter Outer Ring (D1) mm - 136.1
Shoulder Diameter Inner Ring (d1) mm - 114.3
Distance Between the Apexes of the Pressure Cones (a) mm - 88
Hight Retaining Slot (an) mm - 8.1
Width Retaining Slot (bn) mm - 6.5
Radius Retaining Slot (rn) mm - 1

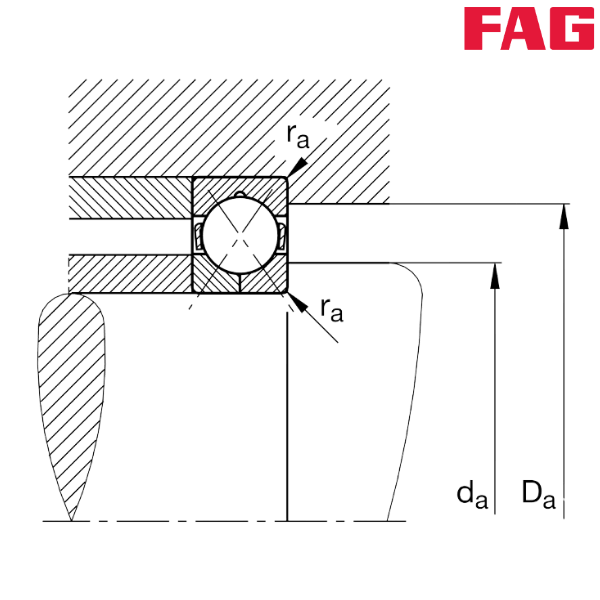

Minimum Diameter Shaft Shoulder (da) mm - 101
Maximum Diameter of Housing Shoulder (Da) mm - 149
Maximum Fillet Radius (ra) mm - 2

Descriptions of Suffixes :
--------------------------------------------------------------------------
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type
TVP - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
N2 - Two Retaining Slots in Outer Ring

** Images are for representation purposes only
