QJ210-XL-MPA FAG

Brand - FAG
Item Number - QJ210-XL-MPA FAG

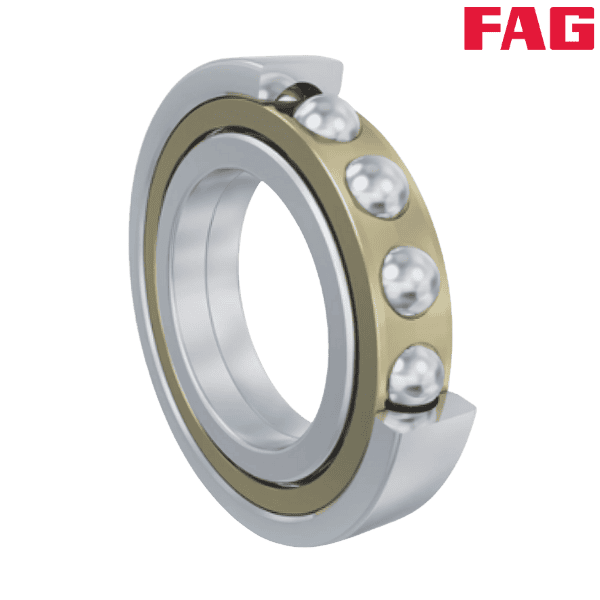

Category - Four Point Contact Ball Bearing Single Row

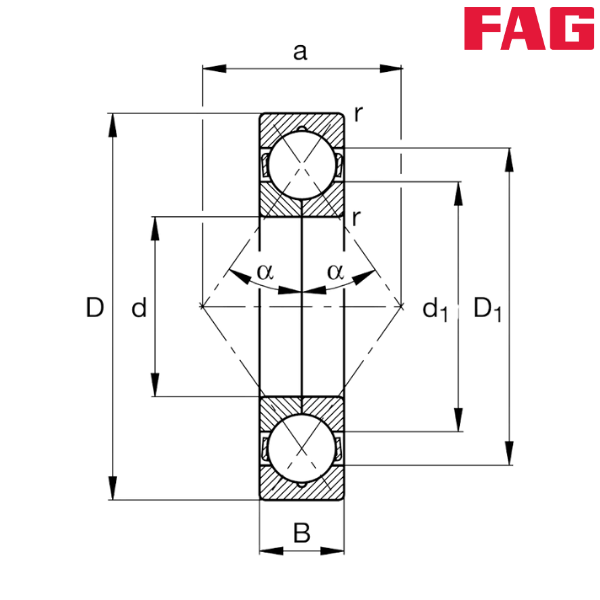

Bore Diameter (d) mm - 50
Outside Diameter (D) mm - 90
Width (B) mm - 20
Basic Dynamic Load Rating, Radial (Cr) N - 62000
Basic Static Load Rating, Radial (C0r) N - 56000
Fatigue Load Limit, Radial (Cur) N - 3950
Limiting Speed (nG) min–1 - 13900
Reference Speed (nϑr) min–1 - 6700
Weight (m) kg - 0.609
Minimum Chamfer Dimension (r min) mm - 1.1
Shoulder Diameter Outer Ring (D1) mm - 76.4
Shoulder Diameter Inner Ring (d1) mm - 63.7
Distance Between the Apexes of the Pressure Cones (a) mm - 49

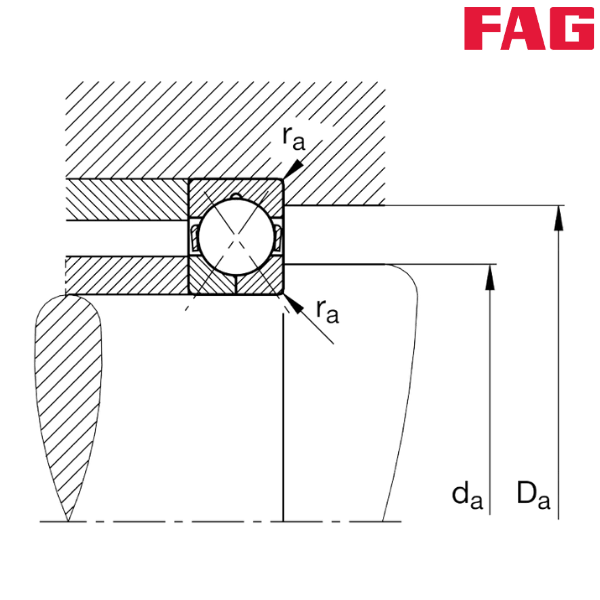

Minimum Diameter Shaft Shoulder (da) mm - 57
Maximum Diameter of Housing Shoulder (Da) mm - 83
Maximum Fillet Radius (ra) mm - 1

Descriptions of Suffixes :
--------------------------------------------------------------------------
MPA - Solid Brass Cage, Guided on Outer Ring
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type

** Images are for representation purposes only
